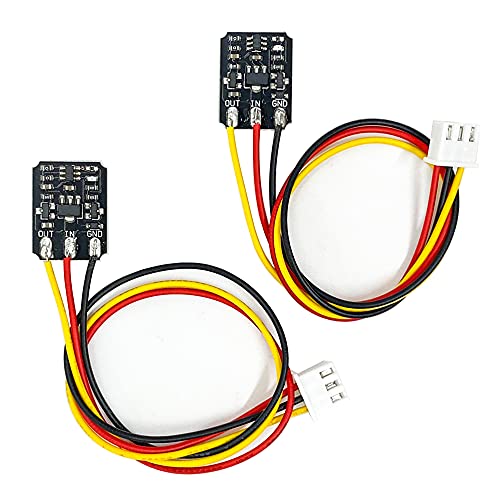

2pcs DC 3V-18V 5V 12V 2.5A Miniature Capacitive Touch Switch Sensor Module Mini Bistable Electronic Switch Control for LED Relay Self-Lock/Jog Trigger Action

R 705

or 4 x payments of R176.25 with Payflex

Payflex

Availability: Currently in Stock

Delivery: 10-20 working days

This item may be available in a different size, colour, scent, version or platform:

Variations

2pcs DC 3V-18V 5V 12V 2.5A Miniature Capacitive Touch Switch Sensor Module Mini Bistable Electronic Switch Control for LED Relay Self-Lock/Jog Trigger Action
- Input voltage: DC 3-18V, standby current less than 5uA, max output current 2.5A. Circuit board size 0.75*0.55 inch. Cable length 7.87inch.
- Two working mode, self-lock and non-lock(Jog) mode. Default setting to Self-locking: touch the OUT output, the hand left has been output, then touch the OUT turn off the output; Jog: touch, OUT has been output, hand to leave, OUT immediately closed.
- Power-on state: Supports power-on boot(Default setting)/power-on standby. Power-on boot state: led light on, output voltage = power voltage; In standby state: LED light off, output voltage=0V.
- It can be used for acrylic, glass, ceramic, plastic and other media surface touch, Touch the back of the sensor, the maximum sensing distance of 6mm. Application for Led light control, external relay, power switch, support external microcontroller.
- When installing, please fix the module and then energize the test, do not put the power on the object, then it will not work. Placement of the outer surface of the insulating shell can not have plating, spraying metal powder paint. Placement surface to be smooth, uneven will affect the stability of the module test. Module installation and paste Do not use foam double-sided adhesive, use a thin high-temperature double-sided adhesive. quick-drying glue can be as thin as possible.

Country	USA
Brand	QINIZX
Manufacturer	QINIZX
Binding	Tools & Home Improvement
ItemPartNumber	Touch-Switch-18V
Model	Touch-Switch-18V
Color	Black
Size	0.75x0.55 inch
UnitCount	2
UPCs	780861370107
EANs	0780861370107
ReleaseDate	0000-00-00
