3 Axis Nema23 Stepper Motor Kit with Closed Loop Nema 23 2

3 Axis Nema23 Stepper Motor Kit with Closed Loop Nema 23 2 Nm/285oz.in Step Motor and Steping Motors Driver 350W 24V Power Supply USB Mach3 Control Card for CNC Controller

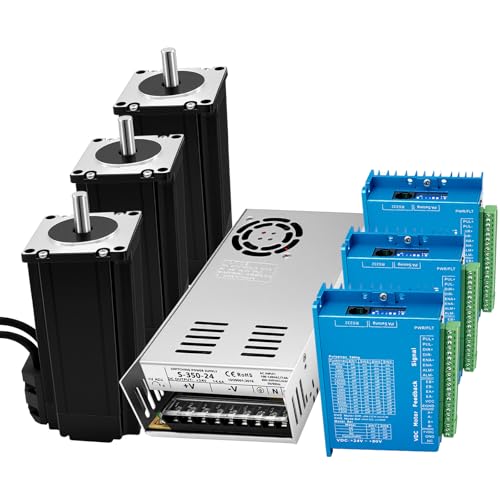

- Items in Kit: 3 Pcs 2Nm nema23 Closed loop stepper motor with 1000line encoder. 3 Pcs Nema 23 stepper motor driver. 1 Pc 24V 350W Power Supply and 1 Pc USB Mach3 Card. This is a complete stepper motor motion control system for professional 3d printer DIY kit.
- Specifications of Nema23 Stepper Motor: Holding Torque: 2N.m; Current: 3A; 2 phase 4 wire; Step Angle: 1.8 degree; Encoder: 1000 lines; Inductance: 2 mH; Resistance: 0.7 (ohm); Motor Length: 57x57x80 mm / 2.24*2.24*3.15 inch.
- Parameter of Nema23 Closed Loop Stepper Motor Driver: DSP Closed loop stepper drive; Impulse response frequency: 200KHz. Supply voltage (DC): 24-80Vdc, Compatible : 4.5~28V signal; continuous output current: 0.5-13A. Micro-stepping driver: 200~25600ppr; Signal input: Support PUL/DIR and CW/CCW modes (difference). This motor driver kit fits all types of machine load conditions without adjusting the gain parameters.
- Stable output 24V 350W DC power supply: Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Shell hollow design, heat dissipation ability faster and stronger, more durable performance. AC input voltage range: 110V or 220V AC; selected by switch to choose input voltage.
- Functions of the Mach3 Control Board: It supports 5-axis linkage control at most. Strong anti-interference and high reliability. Applications: Nema 23 closed loop stepper motor kit can be applied to all kinds small and medium-sized automation equipment and instrument,such as 3D printer, CNC machine, milling machine, carving machine, special industrial sewing machine, stripping machine, marking machine, graph plotter, cnc machine, automatic assembly equipment,automation application and so on.
Country USA
Brand TOSEASTARS
Manufacturer TOSEASTARS
ItemPartNumber 57HB80-3
Model CNC Controller Kit
Color 3A
Size 2Nm
UnitCount 5
ReleaseDate 0000-00-00

Country	USA
Brand	TOSEASTARS
Manufacturer	TOSEASTARS
ItemPartNumber	57HB80-3
Model	CNC Controller Kit
Color	3A
Size	2Nm
UnitCount	5
ReleaseDate	0000-00-00

3 Axis Nema23 Stepper Motor Kit with Closed Loop Nema 23 2 Nm/285oz.in Step Motor and Steping Motors Driver 350W 24V Power Supply USB Mach3 Control Card for CNC Controller
