3KW BT30 220V ATC Water Cooled Spindle Motor Automatic Tool

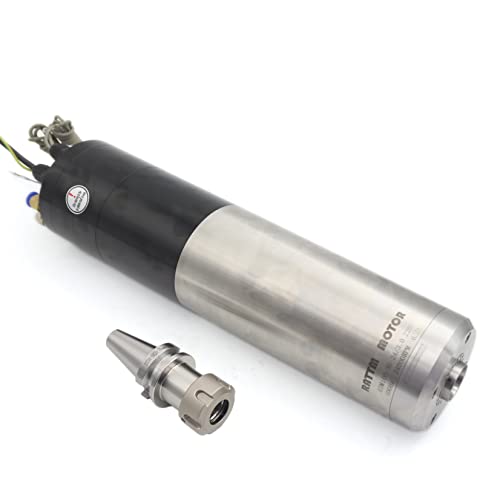

3KW BT30 220V ATC Water Cooled Spindle Motor Automatic Tool Changer 24000rpm 400Hz 100mm for CNC Router Milling Engraving Machine
- Model: RTM100-30-24Z/3.0-220V; This spindle is built-in type spindle motor,built-in three asynchronous motors,by the inverter control; The tool clamping methods: this spindle built-in automatic tool change device,tool holder form is BT30
- Parametes: Voltage: 220V; Maximum speed: 24000rpm; Rated speed: 12000rpm; Frequency: 400Hz; Motor pole: 2 Poles; Rated power: 3.0KW (S1); Peak power: 4.2KW (S6); Rated torque: 190N.cm; Peak torque:260N.cm; Current: 7.6A
- Bearings: The bearing of spindle use grease lubricated angular to contact bearings; Can be used to work on wood, castings, aluminum, glass, etc and other processing
- The spindle use forced cooling mode to cooling motor,front and rear bearings; The spindle built-in PTC 140 temperature sensor
- The spindle built two 0-24V, PNP Sensors: Response tool clamp signal, when the tool holder is hang, black sensor output signal; Response tool open signal, when the tool jaws open, black sensor output signal
Country USA
Brand CNCTOPBAOS
Manufacturer Changzhou Rattm Motor Co.,Ltd
Size 3KW ATC Spindle
ReleaseDate 0000-00-00

3KW BT30 220V ATC Water Cooled Spindle Motor Automatic Tool Changer 24000rpm 400Hz 100mm for CNC Router Milling Engraving Machine
