4 Channel 4 Route MOSFET Button IRF540 V2.0 MOSFET Switch

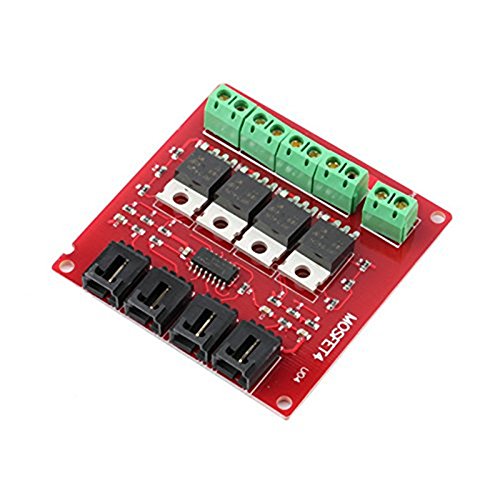

4 Channel 4 Route MOSFET Button IRF540 V2.0 MOSFET Switch Module for Arduino
- 4-channel MOSFET switch
- used to control 100V/33A DC circuit
MOSFET is an electronic devices with good switching characteristics. It is widely used in circuits, such as power supplies switching ,motor drives, lighting dimmer and so on. Relay is another kind of module with switching characteristics. Since relay works relying on mechanical contacts to open or shut. In this way it s will inevitably lead to relay's stopping working while switching time is too short. And papa sound made by relay in some situations is annoying. We designed a 4-channel MOSFET switch. It can supply up to four groups of electronic switches to control different circuit blocks respectively. Limited by the working priciples, MOSFET can only be used to control the DC circuit, such as DC-LED screen and so on, but not suitable for AC circuit control. In some extreme cases,It can be used to control 100V/33A DC circuit. However, it is suggested that the controlled DC voltage is more than 9V.

Country	USA
Binding	Personal Computers
Brand	Shanhai
EAN	5902341785743
IsAutographed
IsMemorabilia
Label	SHANHAI
LegalDisclaimer	If there are other LED lights with the same need to control, only the cathode LED lamp belt connected to the module of the positive (+) and negative LED lamp belt is in turn connected to the switch 2 and switch 3 (S2) (S3), 4 (S4) on switch: The control side of the connection is much simpler, we only need to connect the line through the sensor, the sensor control port and the corresponding Arduino expansion board connected, LED lamp can be controlled by Arduino with these 12V. We took two LED lights in the experiment: All send out with tracking number. Packing list 1 x 4 channel switch MOSFET switch IRF540 isolated power module Board for Arduino
Manufacturer	SHANHAI
Model	BSS399
MPN	3-01-1076
NumberOfItems	800
PartNumber	3-01-1076
Publisher	SHANHAI
Studio	SHANHAI
ReleaseDate	0000-00-00

4 Channel 4 Route MOSFET Button IRF540 V2.0 MOSFET Switch Module for Arduino
