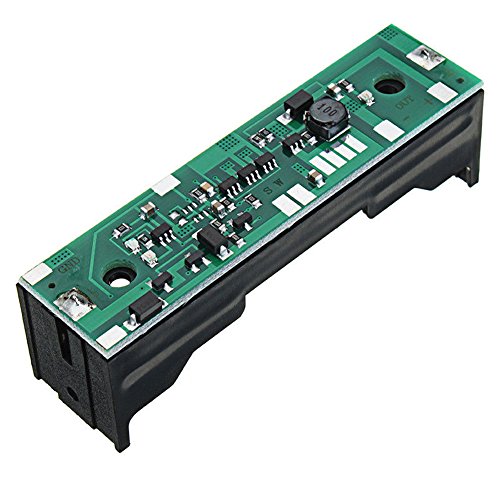

4 in 1 Board UPS for Raspberry pi 18650 Battery Charging 3.7V

4 in 1 Board UPS for Raspberry pi 18650 Battery Charging 3.7V Step up to DC 5V 12V with Protection (5v ouput)
- funcion 1 :step up board, with 18650 battery case, 3.7v step up to 12v ouput
- funcion 2,charing board, input 5v 1A or 2A to charge the 18650 battery
- funcion 3: charing protection, Over-charge protection, over-discharge protection, over-current protection, over-temperature protection, output short circuit protection
- funcion 4: UPS（Uninterrupted power supply）：if input 5v , it will charge the battery and no use the battery power to step up ; if power failure, it will automatically use the battery power.
- You can use two or more in parallel to get more output power.
Note:
1 if the load less than 2 Watt, you can input 5V 1A;if the load more than 2 Watt less than 5 Watt, please use 5V 2A for input.
2 if you want a add switch , please add it on SW pin, it can control the output, otherwise, please short SW pin.
3 the Load current should less than 1A , if you want to control greater load, please use two or more board in parallel.
4. the board with short circuit and other protection, if make a mistake and short it, please input 5v to Reactivate it
5the board has Mos components,which easy destroyed by static electricity,so Please use soldering iron with Ground wire and take anti-static measures.
Tip:
1 you can use it as a power bank.
2 you can use it as a charger for lithium battery.
3 as 5V UPS for raspberry pi or other MCU
Country USA
Brand Delinx
Manufacturer Delinx
Binding Electronics
ItemPartNumber DUPS3U
Color 5v ouput
UPCs 657008885247
EANs 0657008885247
ReleaseDate 0000-00-00

Country	USA
Brand	Delinx
Manufacturer	Delinx
Binding	Electronics
ItemPartNumber	DUPS3U
Color	5v ouput
UPCs	657008885247
EANs	0657008885247
ReleaseDate	0000-00-00
