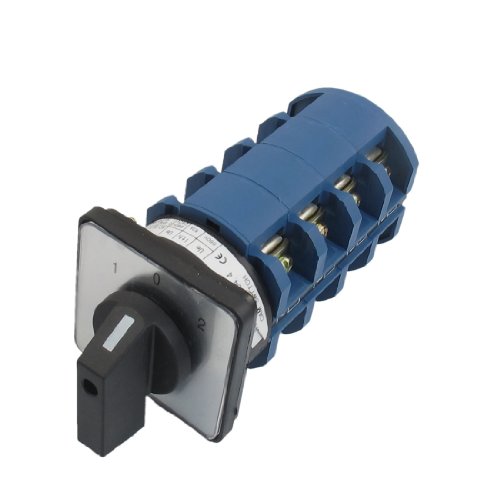

AC 660V 63A 3 Positions 4NO+4NO Rotary Selector Cam Changeover Switch
Product ID: 18269602
Condition: New
Payflex: Pay in 4 interest-free payments of R456.00. Learn more
R 1,824
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA
Mastercard
payflex
ozow
Product Description
AC 660V 63A 3 Positions 4NO+4NO Rotary Selector Cam Changeover Switch
- Product Name : Changeover Switch;Model No. : SZW26-63/D404.4;Ui : 660V;Ith : 63A
- AC-15 : Ue: AC 440V/240V, Ie: 0.95A/1.6A;DC-13 : Ue: AC 440V/240V, Ie: 0.14A;AC-3 : Ue: AC 440V/240V, Ie: 5A
- Positions : 3Positions(1-0-2);Terminal Number : 16;Fit for Panel Thickness : 3mm/0.12"
- Body Diameter : 65mm / 2.6";Overall Size(Approx.) : 65 x 65 x 150mm / 2.6" x 2.6" x 5.9"(L*W*H);Mount Screw Hole Distance : 48mm/1.9"
- External Material : Plastic;Net Weight : 507g;Package Content : 1 x Changeover Switch5 x Screws
- Feature plastic external material, 3 positions (ON/OFF/ON) , latching action type, 8NO , 16 screw terminals, fit for 3mm panel thickness.
- Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
- When installing this Universal Changeover Switch, professional technique is required.
Technical Specifications
Country
USA
Brand
Amico
Label
Amico
Manufacturer
Amico
Model
US-SA-AJD-15788
MPN
a12083000ux0197
PartNumber
a12083000ux0197
Publisher
Amico
Studio
Amico
