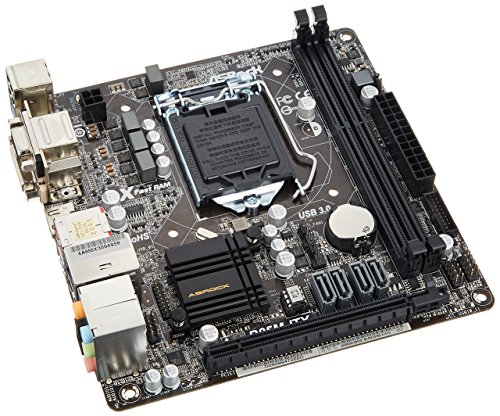

ASRock B85M-ITX LGA1150/ Intel B85/ DDR3/ SATA3&USB3.0/ A&GbE/

ASRock B85M-ITX LGA1150/ Intel B85/ DDR3/ SATA3&USB3.0/ A&GbE/ Mini-ITX Motherboard
- For any issues / troubleshooting, please follow the instruction amnual that is issued in the package. Please seek the help of a IT hardware professional / technician to get this product installed. Contact the manufacturer / seller / Amazon Seller Support for any other issues and clarifications
- 4 Power Phase Design
- Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports Intel Turbo Boost 2.0 Technology
- Mfr Part Number: B85M-ITX, CPU: LGA1150
Specifications Mfr Part Number: B85M-ITX CPU: LGA1150 Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors 4 Power Phase Design Supports Intel Turbo Boost 2.0 Technology Chipset: Intel B85 Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB Slots: 1x PCI-Express 3.0 x16 Slot SATA: 4x SATA3 Ports Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC; Supports Premium Blu-ray Audio LAN: Qualcomm Atheros AR8171 PCI-Express x1 Gigabit Ethernet Controller Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x Optical S/PDIF Out, 1x eSATA Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector Form Factor: Mini-ITX
1. Installing Memory Modules (DIMM)
There are two 240-pin DDR3 (Double Data Rate 3) DIMM slots and supports Dual Channel Memory Technology.
1. For dual channel configuration, install the same brand, speed, size and chip-type DDR3 DIMM pairs.
2. Dual Channel Memory Technology cannot be activated with only one memory module.
3. DO NOT install a DDR or DDR2 memory module into a DDR3 slot; it may cause damage to the motherboard and DIMM.
IMPORTANT NOTE: Permanent damage may happen to the motherboard and DIMM if you force DIMM into the slot at incorrect orientation.
2. USB Configuration
USB Controller
Enable or disable all the USB ports.
Legacy USB Support
Enable or disable Legacy OS Support for USB 2.0 / 3.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux operating systems only.
PLEASE NOTE: Contact the manufacturer / seller / Amazon Seller Support for any other issues and clarifications.
Country USA
Binding Personal Computers
Brand ASRock
EAN 5054484640165
Label ASRock
Manufacturer ASRock
Model B85M-ITX
MPN B85M-ITX
PartNumber B85M-ITX
Publisher ASRock
Studio ASRock
ReleaseDate 0000-00-00

Country	USA
Binding	Personal Computers
Brand	ASRock
EAN	5054484640165
Label	ASRock
Manufacturer	ASRock
Model	B85M-ITX
MPN	B85M-ITX
PartNumber	B85M-ITX
Publisher	ASRock
Studio	ASRock
ReleaseDate	0000-00-00

ASRock B85M-ITX LGA1150/ Intel B85/ DDR3/ SATA3&USB3.0/ A&GbE/ Mini-ITX Motherboard
