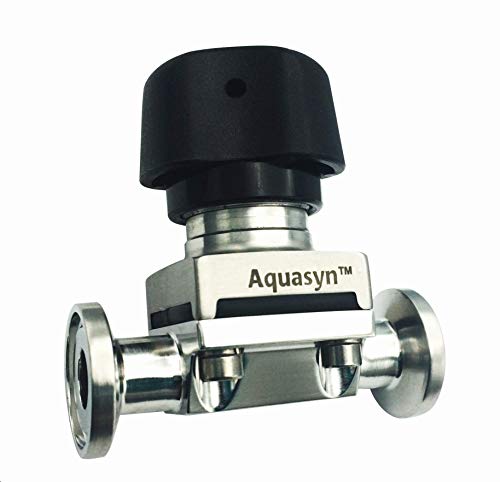

Aquasyn Sanitary 1/2" 2-Way Diaphragm Valve, 316L Stainless

Aquasyn Sanitary 1/2" 2-Way Diaphragm Valve, 316L Stainless Steel [20 Ra/EP SF5], EPDM Diaphragm
- ASME BPE Compliant Diaphragm Valve with 1/2" Tri-Clamp Connections
- Full Material Traceability
- 316L Valve Body with EPDM Diaphragm
- SF5 - 20 Ra/Electropolished Surface Finish
- Made in the U.S.A.
Aquasyn's two-way, weir type, hygienic diaphragm valves feature robust construction, precision machining and state of the art surface finishes, with ASME-BPE compliant chemistry.

Features:
- ASME BPE compliant machined bar stock bodies with controlled sulfur content (0.005 - 0.017%); no castings are used whatsoever.
- Patented Tork-Tite FeetÂ® minimize potential entrapment area, control diaphragm compression, and provide consistent zero leakage closure with repeatable flow control characteristics.
- Aquasyn EPDM diaphragms are tested, certified and supplied with a Certificate of Compliance in accordance with U.S.P. Class VI and FDA Title 21 CFR Part 177
- Full material traceability with Material Test Reports (MTR) included for all product contact surfaces.
- Exterior body surfaces radiused and sloped to promote cleanability by wash-down or CIP methods.
- Drain angle marks etched on end connections to insure self-draining alignment.
- Stainless steel manual bonnet assembly with high temperature plastic handwheel.
- Fully autoclavable bonnet assembly.
Technical Specifications:
- Overall Length: 2.500"
- Ferrule Outside Diameter: âˆ….984"
- Tube Outside Diameter: âˆ….500"
- Tube Inside Diameter: âˆ….370"
- Maximum Rated Working Pressure: 10 Bar
- Recommended Temperature Range for EPDM Diaphragm: -70Â°C to 130Â°C [recommendations provided only for guidance under static conditions]
Country USA
Brand Aquasyn
Manufacturer Aquasyn
ItemPartNumber A08L3ACACE16
Size 0.5 Inch
UnitCount 1
UPCs 797435416413
EANs 0797435416413
ReleaseDate 0000-00-00

Country	USA
Brand	Aquasyn
Manufacturer	Aquasyn
ItemPartNumber	A08L3ACACE16
Size	0.5 Inch
UnitCount	1
UPCs	797435416413
EANs	0797435416413
ReleaseDate	0000-00-00

Aquasyn Sanitary 1/2" 2-Way Diaphragm Valve, 316L Stainless Steel [20 Ra/EP SF5], EPDM Diaphragm
