Aynaxcol 140-1130 RV Slide Relay Board Power Gear Slide Out Relay Controller Replacement for RV Power Gear 14-1130 14-1096 246063 368859, with a Wire Harness Connector 10665
R 1,387
or 4 x payments of R346.75 with
Availability: Currently in Stock
Delivery: 10-20 working days
Aynaxcol 140-1130 RV Slide Relay Board Power Gear Slide Out Relay Controller Replacement for RV Power Gear 14-1130 14-1096 246063 368859, with a Wire Harness Connector 10665

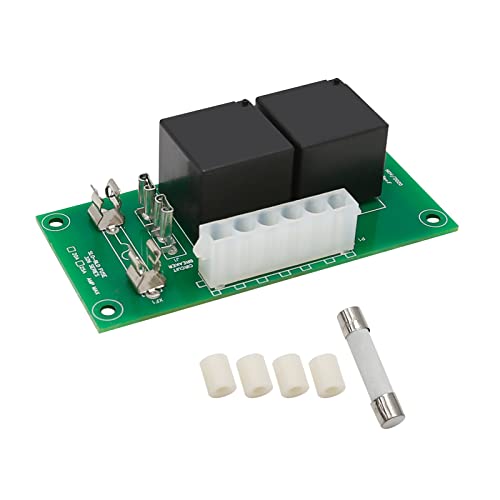

Package Includes: 1 X Power Gear 14-1130 or 140-1130 Slide out relay and Spacers for the bottom of board(to avoid short circuit) and slow blow fuse 20 AMP. 1 X RV Power Gear 14-1130 Slide Out Lippert 135696 Wire Controller 10665 Harness(Circuit Board is NOT included).
This is a replacement board for power gear slide-out controller 14-1130 and 140-1130. Harness also in package.
This circuit board replaces Power Gear circuit board model numbers 14-1130, 14-1098 and 14-1086. The same fuse and breaker that is on the old board may be used on the new 140-1130. The 140-1130 controller will need the center wire on the wall switch to be a 12VDC (positive trigger) which on some models of controllers such as the 14-1098 are ground trigger.
This is a drop in solution to the original Power Gear 14-1130 and 140-1130 If you have the older Power Gear 14-1098 board on your RV this won't be a drop in replacement.
If the Relay board you took out has the part number 14-1130 or 140-1130, you just need to move over your thermal circuit breaker and glass fuse from your older board.
