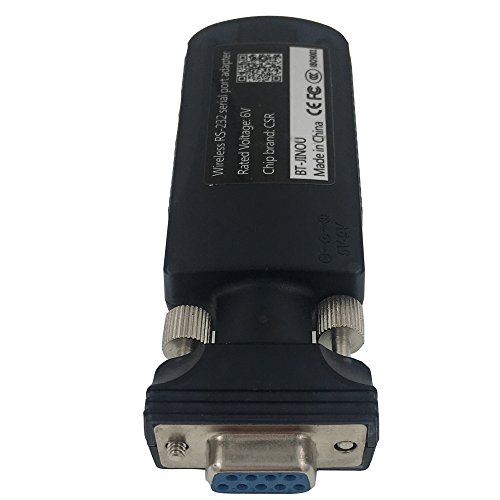

BTS3904C2P Bluetooth 3.0 Serial Female 10m Adapter RS232 to

BTS3904C2P Bluetooth 3.0 Serial Female 10m Adapter RS232 to Bluetooth Class 2 Internal Antenna DB9 Pin
- Bluetooth serial female adapter: RS232 to Bluetooth, Class 2(10m) Baud rate: 1.2K~1382.4Kbps, if it needed, it may up to3Mbps Maximum connecting number: As master device, it can connect 7 slave devices at the same time at most. Power: Plug power supply and DB9 seat power supply, 5 ~ 9V 100mA rated current Communicating Interface: Standard RS232 five-wire serial mode (RxD, TxD, RTS, CTS, GND)
Bluetooth RS232 adapter can be applied to all kinds of home appliances, equipment (such as medical treatment equipment) and other electronic information products. As a cable replacement program, it can connect the single-chip processor or processor directly via using PnP mode to achieve the wireless data transmission among equipment transparently.
Bluetooth RS232 adapter can be used independently as well, excluding using by match.
Application:
PDA, POS, Smartphone
Receipt printer
Bar code reader, RFID reader, IC card reader.
MSR card reader
PLC, CNC machine
Robot, UAV
SCADA, data collector
Specifications:
Specification: Compatible Bluetooth 2.0
Specification
RF output power: 10m(Class 2 standard)
Operating Frequency: ISM Frequency 2.400ï½ž2.483MHz
Spectrum extensions: FHSS
Sensitivity: < -88dBm at < 0.1% BER
Protocol: LM, LC, L2cap, SDP, RFCOMM
Support services: Bluetooth serial protocol (Bluetooth Serial Port Profile)
Maximum connection number: As master devices, it can connect 7 slave devices at the same time at most
Power: Plug power supply and DB9 seat power supply, 5-9V 500mA rated current
Communication Interface: Standard RS232 five-wire serial mode(RxD, TxD, RTS, CTS, GND)
Connector: DB9 socket(needle pattern or hole pattern)
Signal pin: RxD, TxD, RTS, CTS, GND
Security: Security certification, data encryption
Baud rate: 1.2Kï½ž1382.4Kbps, if it needed, it may up to3Mbps
Working Temperature: 0â„ƒï½ž+60â„ƒ
Storage Temperature: -10â„ƒï½ž+70â„ƒ
Size of shell: 3.9(L)Ã—1.4(W)Ã—0.7(H)inch without antenna
After Sale Material:
User manual and power adapter of this Bluetooth serial RS232 adapter is included in the package.
Please also contact us to get the Parameter Setting Tool.
Company email: info@oemblue.com
Company phone number: +86-023-68903066
If any questions, please feel free to contact us.
Country USA
Brand Jinou
Manufacturer Chongqing Jinou Science&Technology Development Co., Ltd
Binding Electronics
ItemPartNumber 4352204618
EANs 6930982301960
ReleaseDate 0000-00-00

Country	USA
Brand	Jinou
Manufacturer	Chongqing Jinou Science&Technology Development Co., Ltd
Binding	Electronics
ItemPartNumber	4352204618
EANs	6930982301960
ReleaseDate	0000-00-00
