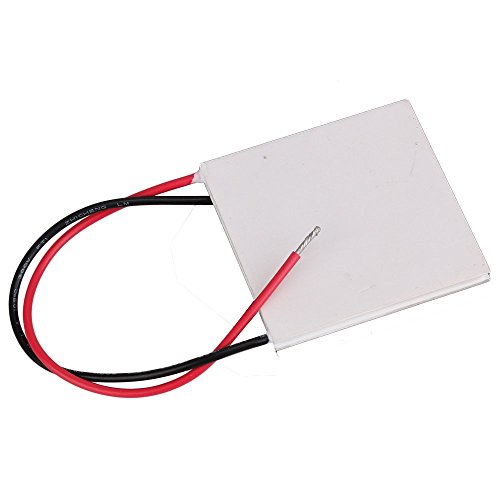

BXQINLENX TEC1-12705 Thermoelectric Cooler Peltier 40X40(2P)
Product Description
BXQINLENX TEC1-12705 Thermoelectric Cooler Peltier 40X40(2P)
- Model number: TEC1-12705
- Dimensions : 40mm x 40mm x 3.8mm
- Voltage(V):DC12V, Vmax:15.5V,Imax=5A
- Qcmax 45W
- Working environment:-55℃～83℃
Description:
Voltage: 12V
Vmax(V): 15.5V
Imax(A): 5A
Qmax(W): 45W
Dimensions: 40mm x 40mm x 3.4mm
Power cord: 150mm
It can be used in CUP's/ Picnic cooler/ Drinks coolers/ Ice boxes/ Laser diodes/ CCD cameras and others.
Note: heat side requires heat sink all the time.
Testing which side is hot without heat sink can be done by connecting +12V or less and disconnect very fast in less then 2 seconds; otherwise, the tile will be burnt inside.
Package included:
1 X TEC1-12705 Thermoelectric Cooler Peltier 12V
Technical Specifications
