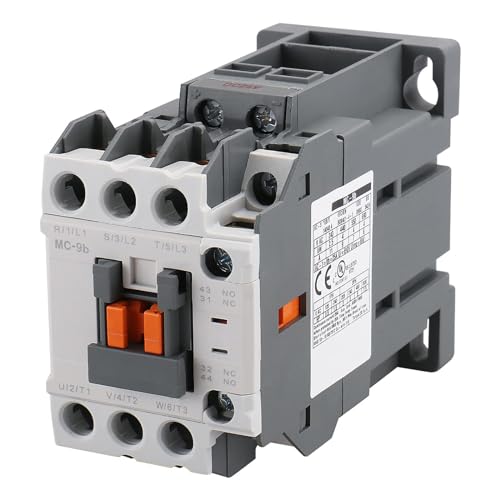

Baomain 3 Pole Magnetic Contactor, 25A Ith 24V DC Coil, 1NO1NC Auxiliary Contact, DIN Rail Mount, UL Certified (9b-24VDC)

R 1,914

or 4 x payments of R478.50 with Payflex

Payflex

Availability: Currently in Stock

Delivery: 10-20 working days

Baomain 3 Pole Magnetic Contactor, 25A Ith 24V DC Coil, 1NO1NC Auxiliary Contact, DIN Rail Mount, UL Certified (9b-24VDC)
- 【9A AC-3 / 25A AC-1 Rated Load Switching】This 3-pole magnetic contactor is rated for motor loads (AC-3 duty) at 9A, 24V DC and resistive loads (AC-1 duty) at 25A, 24V DC. For safe operation, motor circuits require protection by 9A time-delay fuses, while resistive load circuits require 20A time-delay fuses
- 【24V DC Coil with 1NO+1NC Auxiliary Contact】Operates with a 24V DC 50/60Hz coil voltage. Includes 1NO + 1NC auxiliary contact block for use in control circuit interlocking, status signaling, or self-latching circuits
- 【660V Insulation and 6kV Impulse Withstand Voltage】Constructed with insulation rated for 690V and an impulse withstand voltage (Uimp) of 6kV. This design provides protection against voltage spikes in electrical systems
- 【DIN Rail Mounting with Screw Terminals】Designed for installation on standard DIN rails for organization within control panels. Screw terminal type accepts 18-10 AWG copper wires only for electrical connections
- 【UL Certified and CE Marked】This contactor is UL Certified and CE marked, confirming compliance with specific safety standards for use in North America and international markets
Country USA
Brand Baomain
Manufacturer Baomain Electric
Binding Unknown Binding
ItemPartNumber MC-9b-24VDC
Model MC-9b-24VDC
Color Gray
UnitCount 1
ReleaseDate 0000-00-00
