Control Devices ST2512-1A125 ST Series Brass Soft Seat ASME Safety Valve, 125 psi Set Pressure, 1/8 Male NPT
Product Description
Control Devices ST2512-1A125 ST Series Brass Soft Seat ASME Safety Valve, 125 psi Set Pressure, 1/8 Male NPT
- Relief pressure preset to 125 psi with flow rate of 116 cfm
- 1/8 NPT threaded inlet connection with Vibra-Seal thread lock
- Brass construction and music wire spring for corrosion resistance
- 250 F maximum temperature for use in high temperature applications
- ASME safety rated with UV and NB marks

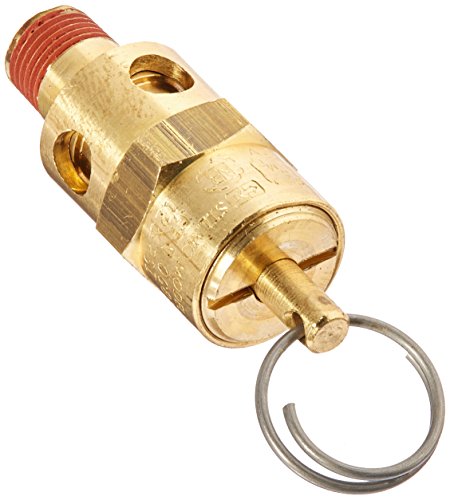

This Control Devices ST2512-1A125 ASME safety valve has a brass body, a 125 psi relief pressure, a 1/8 inch male NPT threaded inlet connection, and a stainless steel pull ring for manual pressure relief. The valve's brass body, brass valve seat, and the zinc plated steel spring resist corrosion and can be used in operating temperatures up to 250 F. The preset relief pressure is accurate to within +/- 3 percent and a silicon O-ring provides a leak-proof seal to within +/- 10 percent of the relief pressure. This safety valve is American Society of Mechanical Engineers (ASME) safety rated and displays the UV mark for pressure vessel safety valves. It also displays the NB mark for certification in accordance with NB-501, National Board Certification of Pressure Relief Devices. This safety valve has a 115.5198 cubic feet per minute (CFM) flow rate and is suitable for pressure relief applications such as in home construction or industrial air compressors.
