DC 4V 5V 6V 7.4V 9V 12V Wireless Relay Remote Control One Key

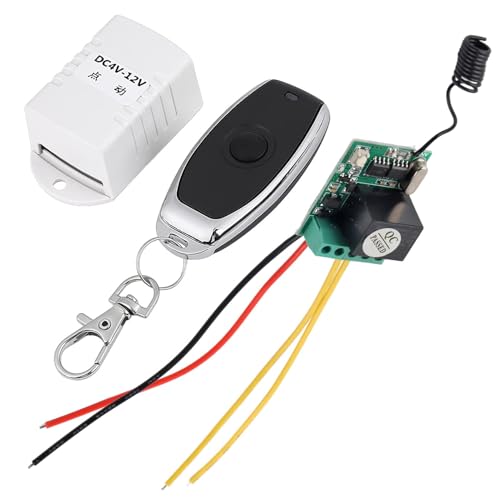

DC 4V 5V 6V 7.4V 9V 12V Wireless Relay Remote Control One Key Switch Receiver + Transmitter for Computer,Auto Door,Window

Specifications:
Working Voltage: DC4V 12V(DC4V 4.5V 5V 6V 7.4V 9V 12V)
Standby Current: 7-9mA
Working Current: 70-130mA
Relay Standard: 20A( 14VDC 12AÂ 120VAC 7A)
Max Load: 10A (better load is less than 7A)
Learning Code: Learning Button to add Transmitter
Working Mode: Momentary Toggle adjusted by Jumper
Compatible: For computer mainframe
Size: Approx. 43 x 30 x 22mm / 1.69 x 1.18 x 0.87inch
Remote Size: Approx. 60 x 30 x 12mm / 2.36 x 1.18 x 0.47inch
Quantity: 1PC
Package Weight: 50G

Momentary----Press and Hold----ON, Release----OFF
Toggle----Press one time----ON. Press it again----OFF
GND----Input GND -
VCC----Input VCC +
NC----Normally Close
COM----Common
NO----Normally Open

Clearing Code:
Press the receiver learning button and hold for about 5s until the receiver LED indicator from ON to OFF, it means the code have been cleared.

Learning Code:
Momentary/Toggle Mode:
Press the receiver learning button, the receiver LED indicator flash slowly, it means entering into learning state, press the transmitter button, the receiver LED indicator flash fast for 2 times and then flash slowly, it means learning is successful. Press the learning button again to turn off the LED indicator, it means learning is finished.

Note: These modes can be changed only when the power is off.
Country USA
Brand Walfront
Manufacturer WALFRONT
Binding Misc.
ItemPartNumber Walfront2fzi0cwpgx
Model 4331028607
UPCs 663862243208
EANs 0663862243208
ReleaseDate 0000-00-00

Country	USA
Brand	Walfront
Manufacturer	WALFRONT
Binding	Misc.
ItemPartNumber	Walfront2fzi0cwpgx
Model	4331028607
UPCs	663862243208
EANs	0663862243208
ReleaseDate	0000-00-00

DC 4V 5V 6V 7.4V 9V 12V Wireless Relay Remote Control One Key Switch Receiver + Transmitter for Computer,Auto Door,Window
