DC Worm Gear Motor 12V High Torque Reduction Gear Box with

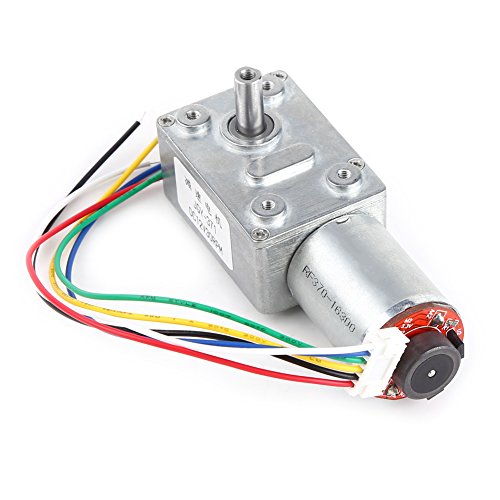

DC Worm Gear Motor 12V High Torque Reduction Gear Box with Encoder Srong Self-Locking 6mm Output Shaft(100RPM)
- FEATURES: Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion.
- STABLE PERFORMANCE: Using precious metals carbon brush.Long service life, low noise, large torque. Stable and reliable performance.Can rotate and reversal, work more accurate.
- SPECIFICATION: 12V; No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional)
- WIRING METHODS: Red: Motor power + (exchange can control rotating and reversing); Black: Coding power- negative (3.3-5V) polarity cannot be wrong; Yellow: Signal feedback; Green:Signal feedback; Blue:Coding power + positive(3.3-5V)polarity cannot be wrong; White:Motor power - (exchange can control rotating and reversing)
- QUALITY AFTER-SALE SERVICE: We care for every customer’s feeling. You can get in touch with customer service when you meet any question.
Specifications:
Rated Voltage: DC 12V
No-loading Revolving Speed(Optional): 100rpm / 40rpm / 30rpm / 20rpm / 10rpm
10RPMÂ Â Â Rated Torque 22.5 kg.cmÂ Â Max.Torque 25kg.cmÂ Â Â Reduction Ratio 600
20RPM Â Â Rated Torque 12 kg.cmÂ Â Â Â Â Max.Torque 25kg.cmÂ Â Â Reduction Ratio 340
30RPMÂ Â Â Rated Torque 7.4 kg.cmÂ Â Â Â Max.Torque 25kg.cmÂ Â Â Reduction Ratio 200
40RPMÂ Â Â Rated Torque 5.6 kg.cmÂ Â Â Â Max.Torque 24kg.cmÂ Â Â Reduction Ratio 150
100RPMÂ Â Rated Torque 1.5 kg.cmÂ Â Max.TorqueÂ 6.4kg.cmÂ Â Â Reduction Ratio 40
Weight: 165g(approx.)
Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing)
Black: Coding power- negative (3.3-5V) polarity cannot be wrong
Yellow: Signal feedback
Green: Signal feedback
Blue: Coding power + positive(3.3-5V)polarity cannot be wrong

White: Motor power - (exchange can control rotating and reversing)
Package Includes:
1 x Motor
Country USA
Brand Walfront
Manufacturer Walfront
ItemPartNumber walfrontz6k1co4w2a-05
Size 100RPM
UPCs 736691272418
EANs 0736691272418
ReleaseDate 0000-00-00

Country	USA
Brand	Walfront
Manufacturer	Walfront
ItemPartNumber	walfrontz6k1co4w2a-05
Size	100RPM
UPCs	736691272418
EANs	0736691272418
ReleaseDate	0000-00-00

DC Worm Gear Motor 12V High Torque Reduction Gear Box with Encoder Srong Self-Locking 6mm Output Shaft(100RPM)
