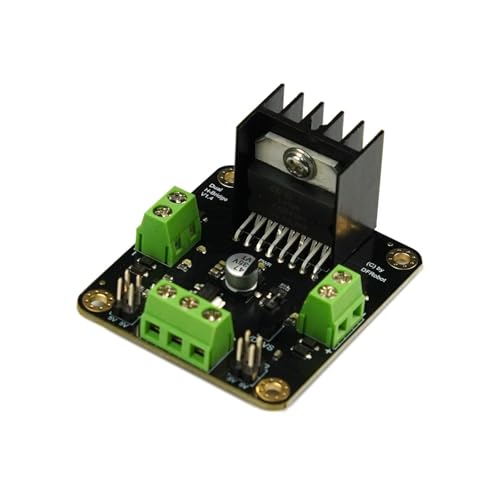

DFROBOT MDV 2x2A DC Motor Controller for Arduino (L298N)

DFROBOT MDV 2x2A DC Motor Controller for Arduino (L298N)
- This MDV motor driver is able to drive 2 DC motors with voltage from 4.8 to 46V, each motor can have the current up to 2A. It is able to be controlled by Arduino.
- It can bear larger current due to the increased heat-sink dissipation
- It is easy to control, using a outstanding high-power motor driver chip, the L298N
- This chip allows for direct drive of two bi-directional DC motors, and incorporates high-speed short diodes for protection
- This breakout module with standard screw holes will help on applications and devices with flat spaces, so you don't need to use the Arduino stacked up shield
INTRODUCTION

This is a 4.8-46V, 2A Dual Motor Controller which is the revised version of the DF-MDV1.0. Its performance has been improved greatly. It can bear larger current due to the increased heatsink dissipation. It is easy to control, using LGS's outstanding high-power motor driver chip, the L298N. This chip allows for direct drive of two bi-directional DC motors, and incorporates high-speed short diodes for protection. Drive current up to 2A per motor output. The driver uses a broad-brush design to reduce wire resistance.

This breakout module with standard screw holes will help on applications and devices with flat spaces, so you don't need to use the Arduino stacked up shield.

SPECIFICATION

The logic part of the input voltage: 6 ~ 12V
Driven part of the input voltage Vs: 4.8 ~ 46V
The logical part of the work current Iss: 36mA
Drive part of the operating current Io: 2A
Maximum power dissipation: 25W (T = 75 degree Celsius)
Control signal input level:
High level: 2.3V = Vin = Vss
Low:-0.3V = Vin = 1.5V
Operating temperature: -25 degree Celsius ~ +130 degree Celsius
Drive Type: Dual high-power H-bridge driver
Module Size: 47 mm (1.85 in) Ã— 53mm (2.1 in)
Module Weight: About 29g

SHIPPING LIST

2A Dual Motor Controller x1
Country USA
Brand DFROBOT
Manufacturer DFRobot
Binding Misc.
ItemPartNumber DRI0002
Model DRI0002
Color Black
ReleaseDate 2017-03-12
UnitCount 1
UPCs 720405490830
EANs 0720405490830

Country	USA
Brand	DFROBOT
Manufacturer	DFRobot
Binding	Misc.
ItemPartNumber	DRI0002
Model	DRI0002
Color	Black
ReleaseDate	2017-03-12
UnitCount	1
UPCs	720405490830
EANs	0720405490830
