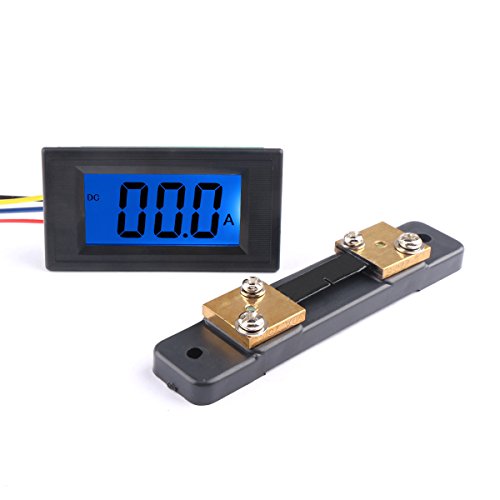

DROK Digital DC 12V Ammeter Panel Amp Meter Gauge DC 0-+/-50A

DROK Digital DC 12V Ammeter Panel Amp Meter Gauge DC 0-+/-50A Current Tester AC/DC 8-12V Current Monitor with Blue Back-light Black Font for Automotive Vehicle
- Operating Voltage: AC / DC 8 - 12V
- Measurement Rang: 0-50a (need an external shunt)
- Operating current: <15mA; display: LCD, Blue backlight, character height 20mm
- Dimensions: 79 x 43 x 25 mm; installation Hole: 76 x 39 mm
- Net weight: about 60G; measuring rate: ≥2 times / s; over-range display: the first shows "1" or "-1"
Technical parameters:
Operating voltage: AC / DC 8 - 12V
Measurement rang:
DC 0~ 50A (need an external shunt)
Operating current: <15mA
Display: LCD, blue backlight, character height 20mm
Dimensions: 79 x 43 x 25 mm
Installation hole: 76 x 39 mm
Net weight: about 60g
Measuring rate: â‰¥2 times / S
Over-range display: the first shows "1" or "-1"

Please be aware that: DC 0~ 10A /20A /30A /50A /100A /200A /300A /500A versions,need to connect to an external current shunt. such as a 50A , it needs to connect to a 50 shunt.

Extreme working conditions:
Working temperature: -10 ~ + 50 Â°c
Operating Humidity: 10 ~ 80% (non-condensing)
Working pressure: 80 ~ 106 kPa
Sun exposure: no direct exposure

Package include:
1x LCD Digital Ammeter
1x 50A Current Shunt
Country USA
Binding Misc.
Brand DROK
Color 50A
IsAutographed
IsMemorabilia
Label DROK
Manufacturer DROK
Model 300114
MPN 300114
NumberOfItems 1
PartNumber 300114
Publisher DROK
Studio DROK
ReleaseDate 0000-00-00

Country	USA
Binding	Misc.
Brand	DROK
Color	50A
IsAutographed
IsMemorabilia
Label	DROK
Manufacturer	DROK
Model	300114
MPN	300114
NumberOfItems	1
PartNumber	300114
Publisher	DROK
Studio	DROK
ReleaseDate	0000-00-00

DROK Digital DC 12V Ammeter Panel Amp Meter Gauge DC 0-+/-50A Current Tester AC/DC 8-12V Current Monitor with Blue Back-light Black Font for Automotive Vehicle
