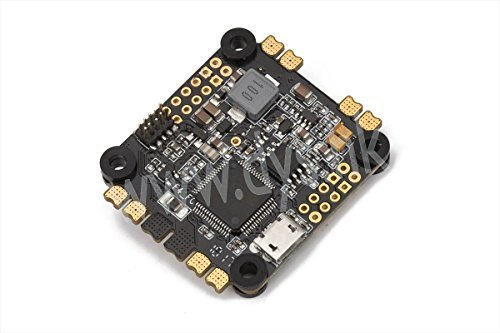

DYS F4 OMNIBUSF4 2-6S LiPo Multicopter Flight Controller

Product ID: B06Y2GFC4Y Condition: New

Sold Out

Product Description

DYS
DYS-F4-FC

DYS F4 V2 OMNIBUSF4 2-6S LiPo Multicopter Flight Controller w 3.3v Pads

Item name: F4
Size: L42 * W36mm
Hole distance: 30.5*30.5mm
Net weight: 11.2g (exclude wire)

Specifications:
* OMNIBUSF4 firmware
* Master STM32F405 GRT6, refresh rate up to 6K
* PCB 3OZ copper enhance current stability and cooling fast
* 5V 3A BEC output
* Exposed pad for easy soldering
* Compatible with all ESCs, as well as DYS 4-in-1 esc without soldering
* Integrated OSD, no need to flash firmware additionally,debug OSD via BF ground station.
* Integrated current meter to monitor the real-time power consumption
* Adjust the PID by OSD via remote control
* Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like TBS one and the upcoming DYS VTX.)
* DYS F4 flight control with 4 damping balls reduce the vibration to make it fly stably.
* 2-6s lipo support
* Net weight: 11.2g (exclude wire)
* Size: L42 * W36mm, hole distance: 30.5*30.5mm
* Gyro: MPU6000
