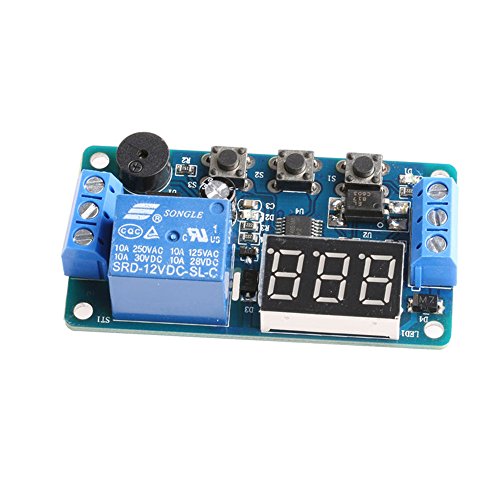

Diymore 12V LED Display Programmable Digital Readout

Diymore 12V LED Display Programmable Digital Readout Multi-function Delayed Timer Relay Module with Car Buzzer (3 buttons)
- P1-1 operating modes:a signal to trigger relay, time is up,the relay disconnect users,You can set relay time T,click K2 the hundreddigital tube starts flashing,then press K3, the hundred digital change;click K2 ten digital tube starts flashing,then press K3,ten digit changes;click K2 bit digital tube starts flashing, then press K3, single-digit changes.
- P1-2 operating modes:Asignal trigger ,digital countdown begins,X seconds after,there lay open Y seconds,then close.Users can set the relay time X,Y;P1-1different time settings similar to the blue lights that set the relay time,blue light indicates setting relay off time. Short press K1, enter function offine-tuning the set,the default trigger is invalid during the delay,pressK1,during the delay trigger active(re-timing),then click the first repeat default settings.
- P1-3 operating modes:Open X seconds,disconnect Yseconds, infinite loop.Users can set the relay timeX,Y;time setting similar to P1-2.Short press K1,enter function offine-tuning set,The default function is:set up an electric circuit the relay first open, press the K1,there lay first close.Press again to repeat the default functionality.
- P1-4 operating modes:a signal to trigger the relay open but do not start the timer,when the trigger signal disappears,digital count down begins,X time after,the relayclose; During the delay,again to the signal,digital count down canceled, stays energized, the signal disappears, restart count down; (equivalentto release the button to start timing, commonly usedin power-offdelay).Users can set the relay time X; time setting similar to P1-1.
Product Parameters:
Life: about 100,000times.
Working temperature:-40~85'C
Size:64.2mm*34.8mm*18.5mm.
Relay Specifications: AC 220V 10A or DC 30V 10A.
Quiescent Current: 20mA,Operating Current: 50mA.
Signal Voltage: 4V~20V (if other ranges can be customized).
Working Voltage: 10~16V (if other ranges can be customized).

Feature:
Increase the supply anti-reversefunction.
Set parameter after power for ever memories.
New upgrades to simplify,to meet customer needs.
It can ensure stability,industrial grade board,class PLC.
Signal terminal voltage signal can be maintained for a longtime.
The use of opto isolated input and output,enhanced anti-jamming capabilit consumption.
Country USA
Brand diymore
EAN 0611029134593
Label IP
Manufacturer IP
MPN TPP
NumberOfItems 1
PartNumber TPP
Publisher IP
Studio IP
ReleaseDate 0000-00-00

Country	USA
Brand	diymore
EAN	0611029134593
Label	IP
Manufacturer	IP
MPN	TPP
NumberOfItems	1
PartNumber	TPP
Publisher	IP
Studio	IP
ReleaseDate	0000-00-00

Diymore 12V LED Display Programmable Digital Readout Multi-function Delayed Timer Relay Module with Car Buzzer (3 buttons)
