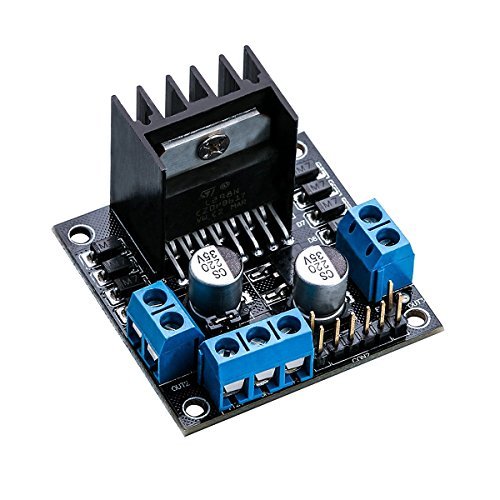

ELEGOO L298N Dual H Bridge Stepper DC Motor Driver Shield Expansion Development Board for Arduino DIY Smart Car Robot Mega UNO

Sold Out / Out of Stock

Please be aware orders placed now may not arrive in time for Christmas, please check delivery times.

ELEGOO L298N Dual H Bridge Stepper DC Motor Driver Shield Expansion Development Board for Arduino DIY Smart Car Robot Mega UNO

This driver module is based on L298N H-bridge, a high current, high voltage dual full bridge driver. It can drive up to 2 DC motors 2A each. It can also drive one stepper motor or 2 solenoids. The driver can control both motor RPM and direction of rotation. The RPM is controlled using PWM input to ENA or ENB pins, while of rotation direction is controlled by supplying high and low signal to EN1-EN2 for the first motor or EN3-EN4 for second motor. This Dual H-Bridge driver is capable of driving voltages up to 46V.
Features
Dual H bridge drive (can drive 2 DC motors)
Chip L298N
Logical voltage 5V
Drive voltage 5V-35V
Logic current 0mA-36mA
Drive current 2A(For each DC motor))
Weight 30g
Size: 43*43*27mm
Package include:
1x L298N Module
Country USA
Label ELEGOO
Manufacturer ELEGOO
Publisher ELEGOO
Studio ELEGOO
ReleaseDate 0000-00-00
