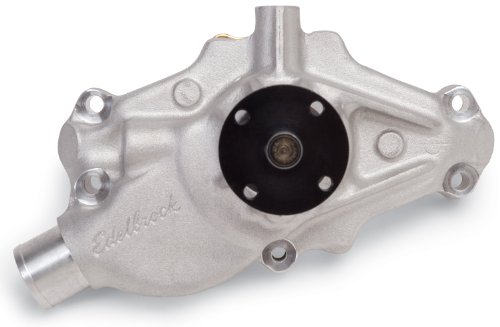

Edelbrock 8815 Victor Series Mechanical Water Pump

Edelbrock 8815 Victor Series Mechanical Water Pump
- Cast from A356 aluminum and heat treated to T-6 specifications
- Computerized CNC machines for optimum quality and maximum performance for both street and track
- Reverse rotation, 3/4 inch pilot shaft
- Short style, 5. 80 inch block face to hub, 1. 54, inlet diameter
- Comes with a natural finish
The Edelbrock Victor Series Water Pumps are designed to produce maximum flow, maximum pressure, and equal distribution between both sides of the engine block, within 1%. They are ideal in preventing overheating in street rods, street machines, muscle cars, tow rigs, and RVs. This 3/4 pilot shaft, short style water pump has reverse rotation and comes with heavy-duty 3/4 inch ball/roller bearing. The dimension from block surface to hub is 5.80 and its inlet diameter is 1.54. These aluminum pumps have CNC-machined housings with special one-way internal passages that flow more coolant at higher velocities, even at low engine speeds. The CNC-machined, cast iron impellers are larger than other impellers. They have curved vanes that produce greater flow with less cavitation. Other features include heavy-duty roller bearing assemblies built to withstand higher torsional loads, billet steel hubs, and leak-proof seals. These water pumps will clear composite timing covers on late model GM performance crate engines.
Country USA
Brand Edelbrock
Manufacturer Edelbrock
Binding Automotive
ItemPartNumber 8815
Model 8815
Warranty 90 Day Manufacturer
ReleaseDate 2012-06-05
UnitCount 1
UPCs 085347088157
EANs 0085347088157

Country	USA
Brand	Edelbrock
Manufacturer	Edelbrock
Binding	Automotive
ItemPartNumber	8815
Model	8815
Warranty	90 Day Manufacturer
ReleaseDate	2012-06-05
UnitCount	1
UPCs	085347088157
EANs	0085347088157
