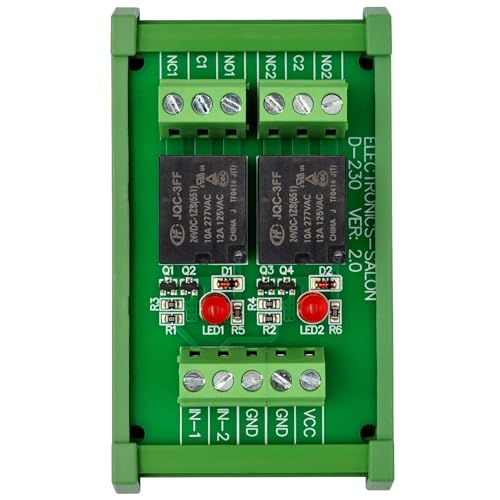

Electronics-Salon DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 24V Version.
Product Description
Electronics-Salon DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 24V Version.
- 2 Channel SPDT power relay interface module, high quality JQC-3FF 10Amp relays.
- Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
- High quality screw terminal block, FR-4 fiber glass PCB, dual copper layers.
- Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
August-17, 2018, upgrade to version 2.0
2 Channel SPDT power relay interface module, high quality JS1-24V-F 10Amp relays.
Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.
Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Operating Voltage / Current (VCC): 18 to 36VDC / 60mA(at 24VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.
Output (relay switch) contact rating for each channel:
For AC, 125 / 250 VAC, 10Amp
For DC, 30 VDC, 5Amp
External dimensions: L49.5mm x W87mm x H43mm.
PCB dimensions: L47.35mm x W72mm x H15.5mm
The item no paper specifications, before buy please download the PDF datasheet:
https://images-na.ssl-images-amazon.com/images/I/91PlLWnPvlL.pdf
Technical Specifications
