FG9023 -25 Inch Outdoor 900mhz Fiberglass Omni Antenna With

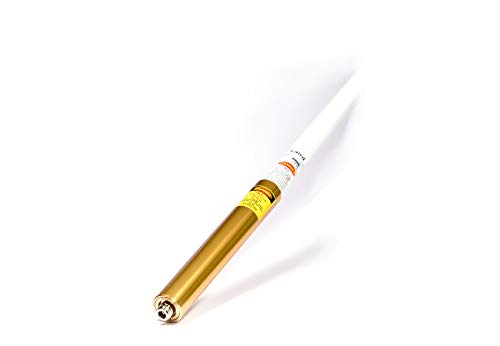

FG9023 -25 Inch Outdoor 900mhz Fiberglass Omni Antenna With Fixed N-Female Connector
- The Laird / Antenex FG9023 is an Outdoor Rated fiberglass omni-directional stick antenna that offers 3 dBd / 5 dBi gain in the 900 mhz ISM band.
- The unit is ultra-rugged and perfectly suited for 900 mhz for point-to-point / Machine to Machine communications.
- Typically, the antenna is used in conjuction with radios from DIGI, FreeWave, Avalan or MOXA.
- Overall length is just 24 inches including the fixed N-Female connector.
- Equivalent to Antenex Part# 14221
FIBERGLASS BASE STATION ANTENNAS FEATURE INDUSTRY-LEADING DESIGN COMPONENTS THAT PERFORM IN EXTREME CONDITIONS *Note: The ROSA-HDM1 mounting bracket is NOT included with the antenna* Laird Technolgies' fiberglass base station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a "cold" sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency. FEATURES AND BENEFITS: Every FG fiberglass base antenna is tested on a network analyzer before shipping to assure the best performance. Special UV Treated - stands up to the sun Durable gold anodized sleeve and cap with N Female connector Custom tuning available APPLICATIONS: Omnidirectional (circular) outdoor antenna applications used by private organizations and government agencies around the globe. Typical applications include land based and marine radio and data transmissions for public safety agencies, commercial organizations, and the military.
Country USA
Brand Laird Antenex
Manufacturer Laird Antenex
Binding Electronics
ItemPartNumber FG9023
Color White
UnitCount 1
UPCs 880928840939
EANs 0880928840939
ReleaseDate 0000-00-00

Country	USA
Brand	Laird Antenex
Manufacturer	Laird Antenex
Binding	Electronics
ItemPartNumber	FG9023
Color	White
UnitCount	1
UPCs	880928840939
EANs	0880928840939
ReleaseDate	0000-00-00

FG9023 -25 Inch Outdoor 900mhz Fiberglass Omni Antenna With Fixed N-Female Connector
