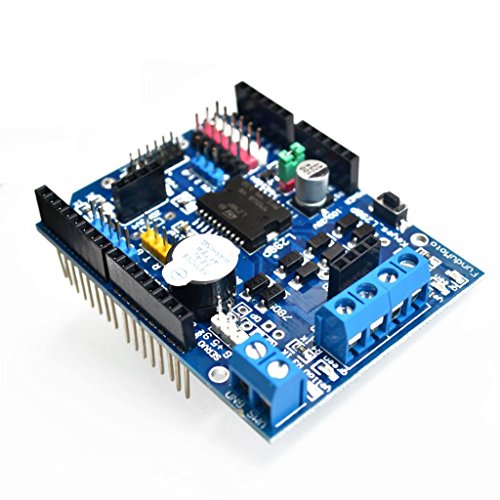

FICBOX L298P Motor Driver Module H-bridge Drive Shield Expansion Board High-Power DC Stepper Motor Controller For Arduino

R 808

or 4 x payments of R202.00 with Payflex

Payflex

Availability: Currently in Stock

Delivery: 10-20 working days

Please be aware orders placed now may not arrive in time for Christmas, please check delivery times.

FICBOX L298P Motor Driver Module H-bridge Drive Shield Expansion Board High-Power DC Stepper Motor Controller For Arduino
- Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A
- Use eight high-speed Schottky diodes at motor output as protection
- Stack design can be directly plugged into the Arduino, easier to use
- The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver
- Driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
Technical Specifications:
1 logical part of the input voltage VD: 5V
2driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
3 logical part of the work current Iss: <36mA
4.driven part of the operating current Io: <2A
5 maximum power dissipation: 25W (T = 75 Celsius)
6. control signal input level: High 2.3V low -0.3V
7 Working temperature: -25 + 130 Celsius
8 hardware interface: 5.0mm pitch terminal
9 belt clip and can be controlled via front row access signal
10. Drive Type: Dual power H-bridge driver
11 Pin occupancy: D4 ~ D7 direct drive motor
12 supports PWM / PLL mode motor speed control
13 Size: 68 * 53mm

Country	USA
Binding	Electronics
Brand	FICBOX
EAN	6912504807693
Label	FICBOX
Manufacturer	FICBOX
Model	LYSB01D83BMES-ELECTRNCS
MPN	LYSB01D83BMES-ELECTRNCS
PartNumber	LYSB01D83BMES-ELECTRNCS
Publisher	FICBOX
Studio	FICBOX
ReleaseDate	0000-00-00
