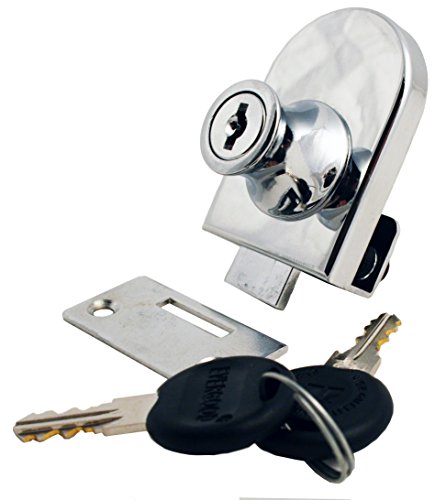

FJM Security 0240-KA, Single Glass Door Lock with Chrome Finish, Keyed Alike

Increased Security Single glass door locks give an added security level to glass display cases, trophy cases, and retail cases. The keyed alike locks are easily slipped onto the edge of the glass door, requiring no boring of holes. These locks are perfect for business and home applications. Any retail establishment with display cases will find this security lock a great addition to their business. Easily slips onto the edge of the glass for quick installation. Available keyed alike so you can have multiple display cases all keyed the same.

Easy-to-Use Single glass door locks can be easily installed on glass cabinet doors, retail display cases, etc. up to 5/16” thick without drilling. Locks come with set screws and a cushioned lining to hold them securely to the glass. The 3/8” bolt throw secures the lock in the jamb-mounted strike plate.

Easy Installation Glass door lock is a perfect security solution that slips onto the edge of the glass door, requiring no boring of holes. Lock works on glass up to 5/16” thick (which is most retail display glass cases).

Included with lock

• single glass door lock
• jamb-mounted strike plate
• 2 keys
• set screws with cushioned lining

Single Glass Door Lock Dimensions

• lock height is 1-7/8””
• lock width is 1-1/2”
• lock depth is 1-1/16””
• handle diameter is 1”
• cylinder diameter - 5/8” wide
• bolt throw is 3/8”
• strike plate is 2” x 0.6” x 0.6”
• strike plate mounting hole spacing is 1.5” between the holes
