FebSmart PCIE X8 Interface to 2X 10GbE SFP+ Fiber Port

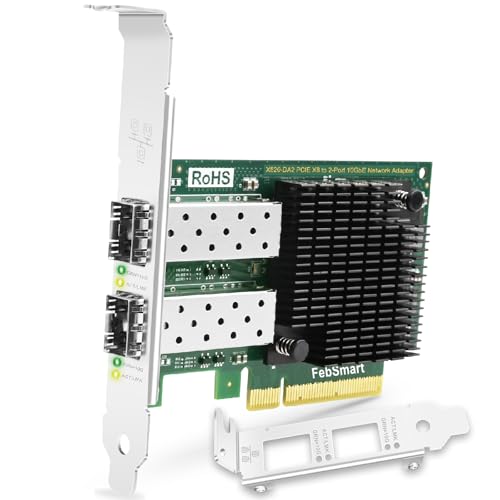

FebSmart PCIE X8 Interface to 2X 10GbE SFP+ Fiber Port Converged Ethernet Adapter, Intel 82599ES 10 Gigabit Ethernet Controller, 2-Port 10GbE PCIE NIC Card, 2X 10GbE SFP+ LAN Adapter (X520-DA2)
- 1. FebSmart X520-DA2 is a PCI Express X8 lane interface to 2X 10GbE SFP+ Fiber port converged ethernet adapter. It is based on Intel 82599ES 10 gigabit ethernet controller, will provide reliable 2X 10Gbps LAN or SAN network connection on Windows Desktop PCs, Windows Servers, Network Attached Storage (NAS), Linux PCs and Data Centers for Virtualization and Storage Environments.
- 2.Major Controller: Intel 82599ES 2X 10 Gigabit Ethernet Controller; Network Interface: 2X 10GbE SFP+ Fiber Port, Support 10GBASE-SR, 10GBASE-LR Transceivers and SFP+ Copper Direct Attach (DAC) Physical Media; Network Type: LAN, SAN; Host Interface: PCIE 2.0 Protocol with PCIE X8 Interface, 40Gbps Total Bandwidth; Optical Transceiver Attached Speed: 10GbE, 1GbE; Direct Attached Cable Speed:10GbE.
- 3. Support IEEE 1588, IEEE 802.3 and IEEE 802.1AS; Support Intel Data Direct I/O Technology; Support Intelligent Offloads; Support Storage Over Ethernet: iSCSI, NFS; Support Intel Virtualization Technology for Connectivity (VT-c): VMDq, SR-IOV; Support On-chip QoS and Traffic Management and Flexible Port Partitioning; Support Fiber Channel over Ethernet; Support MAC sec IEEE 802.1 AE; Support Pre-boot Execution Environment (PXE).
- 4. Need to Install driver on Windows 7, 8.x, 10, 11 32/64bit, Driver Free on Windows Server 2012, 2012R2, 2016, 2019, 2022. Linux need to install IXGBE driver. Support RHEL 9.3-9.4, 8.9-8.10, RHEL 9.0 - 9.2, 8.0 - 8.8, SLES 15 SP5, SLES 15 SP4 and previous, SLES 12 SP5, SLES 12 SP4 and previous; Support Ubuntu 22.04 LTS, Ubuntu 20.04 LTS and Debian 11; Support FreeBSD 14.0~13.3, 13.1 - 13.2, 12.0 - 12.3; Support VMWare ESXI systems.
- 5. ATTENTION: 1. PCIE X8 interface design, works on PCIE X8, X16 slot with active and open PCIE X8 or PCIE X16 Lane, or the X520-DA2 cannot get expected 2X 10Gbps. 2. Low profile bracket in the package and full height bracket mounted on this network adapter. 3. X520-DA2 MUST works with 10GBASE-SR, 10GBASE-LR transceivers or SFP+ Copper Direct Attach Cables, users need to purchase fiber module or LC cables separately.
Country USA
Brand FebSmart
Manufacturer FebSmart Co.,LTD
Binding Electronics
ItemPartNumber X520-DA2
Model X520-DA2
Color Matte Green
UnitCount 1
ReleaseDate 0000-00-00

Country	USA
Brand	FebSmart
Manufacturer	FebSmart Co.,LTD
Binding	Electronics
ItemPartNumber	X520-DA2
Model	X520-DA2
Color	Matte Green
UnitCount	1
ReleaseDate	0000-00-00

FebSmart PCIE X8 Interface to 2X 10GbE SFP+ Fiber Port Converged Ethernet Adapter, Intel 82599ES 10 Gigabit Ethernet Controller, 2-Port 10GbE PCIE NIC Card, 2X 10GbE SFP+ LAN Adapter (X520-DA2)
