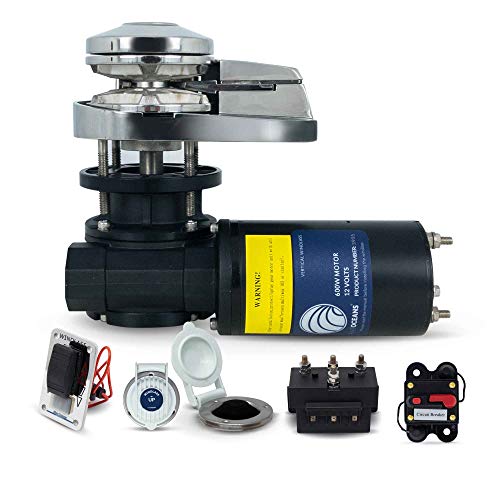

Five Oceans Pacific 600 Vertical Anchor Windlass 600W/1000 lbs

Five Oceans Pacific 600 Vertical Anchor Windlass 600W/1000 lbs - 1/4" HT-G4 Chain & 1/2" Rope FO-3931

The Five Oceans Pacific 600 Vertical Windlass has a stylish look, 100% stainless-steel design which sits elegantly on the deck. Not to mention, it's fitted with a heavy-duty lever for easy installation. Noteworthy is the importance of the gypsy creating the perfect contact between rope and chain. It includes an impact-resistant motor cover, solenoid and standard switches which fit perfectly on the cockpit or bow of the vessel. This Pacific series windlass is ideal for your average cruiser, the bigtime fisherman, those made for speed or the calm sailor.

Note: For the vertical windlass series, the motor allows for a 90-degree rotation at 12 o'clock, 3 o'clock, 6 o'clock, & 9 o'clock. Depending on the spacing that permits for such positioning.

Installation Details
Note for decks that are not flat, a suitable mounting pad may be required to take up camber or sheer. Decks made of a thin, foam or balsa laminate construction, will require reinforcement in order to spread the loads that will be applied to the deck while the windlass is in use. The standard (1/4") threaded mounting studs supplied suit deck and packing thickness of up to 35 mm (1 1/4"). These are adequate for most installations.

FEATURES:
DIY - ready mounting template for convenient on-deck windlass installation
Powerful motor for fast and secure anchor retrieval at the push of a button
Includes a dual set of switches for either the bow or the console.
Suitable Windlass for boats of 16 to 33 feet in length
Backed by a 1-year warranty

INCLUDES:
- Windlass
- Dual-Directional Solenoid
- 60 Amp Circuit Breaker
- Up/Down Rocket Switch
- Up/Down Foot Switch
- Installation Winch
- Manual w/Mounting Template

SPECIFICATIONS:

Model: Pacific 600
Motor: 600W
Maximum Pull: 1000 lbs (453 kg)
Voltage: 12 Volts
Current draw(A): 33 Amps - Max current draw(A): 55Amps
Circuit Brea
