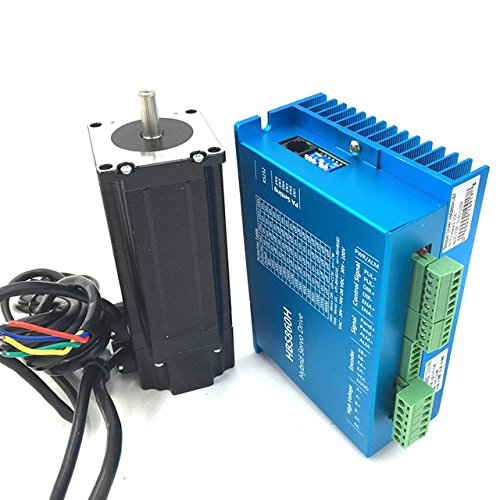

GOWE CNC Stepper Kits CNC Router NEMA23 3Nm Closed Loop Stepper Drive and Motor Kits DC36V HBS860H+57HBS30 Easy Servo

GOWE CNC Stepper Kits CNC Router NEMA23 3Nm Closed Loop Stepper Drive and Motor Kits DC36V HBS860H+57HBS30 Easy Servo

• 1. Packing listing 1 PCS Drive HBS860H 1 PCS Motor 57HBS30 1 PCS Encoder Cable 3M 2. Drive functional characteristics Model HBS860H Type DSP Closed loop stepper drive maximum peak current 8A Impulse response frequency 200KHz Micro-stepping driver 200~51200ppr Voltage 20~80VAC/DC30-110V
• Protective function Over voltage, over current, tracking error, overproof Signal input Support PUL/DIR and CW/CCW modes (difference) Compatible 5~24V signal (Don't need a resistor) Advantage no step to lose, Low noise, little vibration and high efficiency, low heat Continuous overload Output an alarm signal Type of cooling Air-cooling
• 3. Motor electric parameter Step angle/phase 1.8 degree Rated voltage/current 4.52V/4A resistance 1.13ohm Inductance 3.6mH Hold torque 3NM Rated Speed 1000RPM Encoder 1000line Class of insulation B Rotor inertia 800 g.cm2
• 4. Appications desktop CNC routers, small CNC mills, laser cutters / engravers, dental mills, electronic assembly & inspection equipments, labeling equipments, pick & place machines, X-Y tables, scientific instruments... Especially for short-distance, short-time, fast start-stop and zero-speed stable stop.
