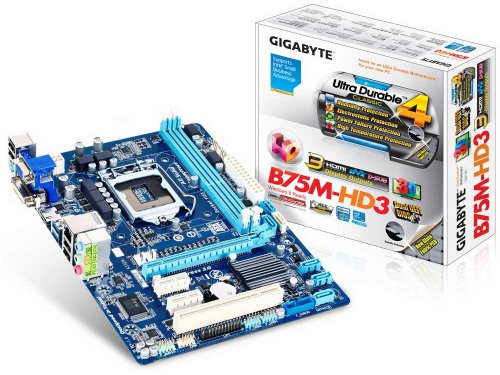

Gigabyte DDR3 1600 Intel - LGA 1155 B75 HDMI and DVI mATX

Gigabyte DDR3 1600 Intel - LGA 1155 B75 HDMI and DVI mATX Motherboard GA-B75M-HD3
- CPU:Support for Intel Core i7 /i5/i3 processors in the LGA1155 package
- Memory: 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory; 1600/1333/1066 MHz memory modules
- Onboard Graphics: 1 x D-Sub port;1 x DVI-D port, supporting a maximum resolution of 1920x1200;1 x HDMI port, supporting a maximum resolution of 1920x1200
- LAN:Realtek GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots: 1 x PCI Express x16 slot (3.0), running at x16; 2 x PCI Express x1 slots, 1 x PCI slot
- Storage Interface: 1 x SATA 6Gb/s connector; 5 x SATA 3Gb/s connectors
- USB: Up to 4 USB 3.0/2.0 ports ; Up to 8 USB 2.0/1.1 ports
Specifications
- Mfr Part Number: GA-B75M-HD3
- CPU: LGA1155
  - Supports Intel Core i7/ i5 / i3/ Pentium/ Celeron Series Processors
- Chipset: Intelâ€šÂ B75 Express
- Memory: 2x DDR3-1600/1333/1066 DIMM Sockets, Dual Channel, Non-ECC, Max Capacityâ€šÂ of 16GB
- Slots: 1x PCI-Express 3.0 x16 Slot, 2 x PCI Express 2.0 x1 Slots, 1x PCI Slot
- SATA: 1x SATA3 Ports, 5x SATA2 Ports
- Audio: Realtek ALC887 7.1-channel High Definition Audio CODEC
- Video: Integrated Graphics Controller
- LAN:â€šÂ â€šÂ Integrated Realtek Gigabit Ethernet Controller
- Ports: 4x USB 3.0/2.0 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear,â€šÂ 4 via header), 1x PS/2 Keyboad/Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 4pin ATX 12V Power Connector
- Form Factor: MicroATX, 24.4 x 17.4 cm
Country USA
Brand Gigabyte
Manufacturer Gigabyte
Binding Personal Computers
ItemPartNumber GA-B75M-HD3
Model GA-B75M-HD3
UnitCount 1
UPCs 818313016294
EANs 0163120524808
ReleaseDate 0000-00-00

Country	USA
Brand	Gigabyte
Manufacturer	Gigabyte
Binding	Personal Computers
ItemPartNumber	GA-B75M-HD3
Model	GA-B75M-HD3
UnitCount	1
UPCs	818313016294
EANs	0163120524808
ReleaseDate	0000-00-00

Gigabyte DDR3 1600 Intel - LGA 1155 B75 HDMI and DVI mATX Motherboard GA-B75M-HD3
