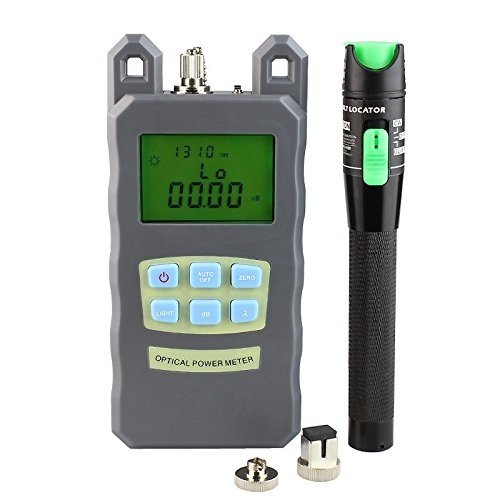

Goeco -70 to +10dbm Fiber Optic Cable Tester FC SC & 2.5mm 20mw Red Light Visual Fault Locator with Sc and Fc Connector

We have the latest English Manual, please contact us

Specification:

1.Fiber Optic Cable Tester
Calibration Wavelength: 800~1700nm
Detector Type: InGaAs
Measurement Range: -70 ~ 10dBm
Linearity: 0.01dB
Display Resolution: 0.01dB
Wave ID: 850, 980, 1300, 1310, 1490, 1550, 1625nm
Connector: FC/SC/ Interchangeable
Alkaline battery
Power Adapter: 8.4V
Working Time: 240h without backlight
Working Temperature: -10 ~ 60 Celsius
Storage Temperature: -25 ~ 70 Celsius
Dimension(mm): 18x8.2x2.8cm
Weight: 230g

2.Visual Fault Locator
Wavelength: 650nm ± 20nm
Output Power: >20mW
Dynamic Distance: >18km
Connector: 2.5mm Universal connector
Power Supply: AA * 2 (Not Include)
Operating Temperature: -10 -- +50 °C, < 90%RH
Storage Temperature: 20 -- +60 °C, < 90%RH
Packaging Size: 210*73*30
Weight: 150g

Package Include:
1x Fiber Optic Cable Tester
1x Visual Fault Locator
1x FC Connector
1x SC Connector
2x Toolkit
1x English Instruction
