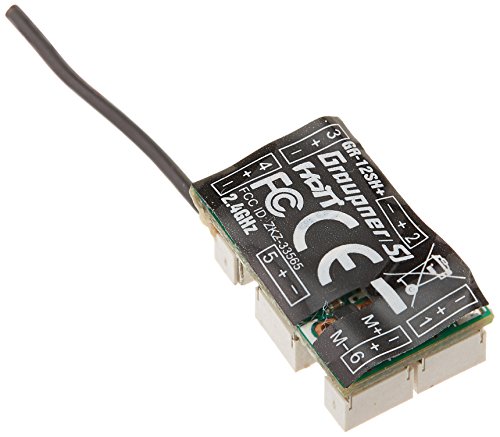

Graupner Gr-12 Sh+ 6 Channel Receiver

Graupner Gr-12 Sh+ 6 Channel Receiver
- HOPPING TELEMETRY TRANSMISSION 2.4 GHz technology with two-way telemetry, updatable firmware? The newest features always!
- Servo connections top of the board, All servo connectors use space saving SH-style connectors; analog/digital slow flyer servo compatible
- The receiver supports generation of SUMO/SUMI/SUMD signal output on Ch. 6 for the convenient use of gyros and control boards
- Programmable fresh rate of 10 and 20ms?20 mms recommended for analog servos to avoid servo ?growl?
- Small form factor with a 1.0,antenna is ideal for small models and for use as a satellite receiver to reduce servo wiring runs
The Graupner GR-12 SH+ HoTT (Hopping Telemetry Transmission) 2.4GHz 6 Channel receiver is designed with Graupner's unique telemetry technology, supporting bi-directional data transmission to give the user real-time sensor data. The use of up to 75 frequency hopping channels ensures extreme operating reliability and immunity to external interference. By utilizing a minimalist design that shaves the receiver to the lowest possible weight, the resulting product is truly a low mass and volume wonder. The receiver's telemetry functions, telemetry data such as input and output signal strength, receiver temperature, battery capacity and voltage are transmitted real time in-flight to the transmitter for onscreen review and post flight analysis. Featuring a versatile exposed, one-chip integrated RF design and MCU (Microcontroller Unit) chip, the GR-12 SH+ receiver is lightweight, has the smallest of form factors and is exceptionally affordable. Its small size, low weight and high quality make it ideal for use in small or low channel models. Other Graupner telemetry sensors can be plugged in through the Ch. 5 port via a Y-lead for passing further real-time, in-flight data to the transmitter.

Country	USA
Binding	Toy
Brand	Graupner
EAN	4013389479295
IsAdultProduct
Label	Graupner
Manufacturer	Graupner
Model	33565
MPN	33565
PartNumber	33565
Publisher	Graupner
Studio	Graupner
Warranty	2 year limited warranty
ReleaseDate	0000-00-00
