HOBBYMATE CICADA 5A/7A BLHELI_S 1-2S 4 IN 1 ESC 16X16MM FOR

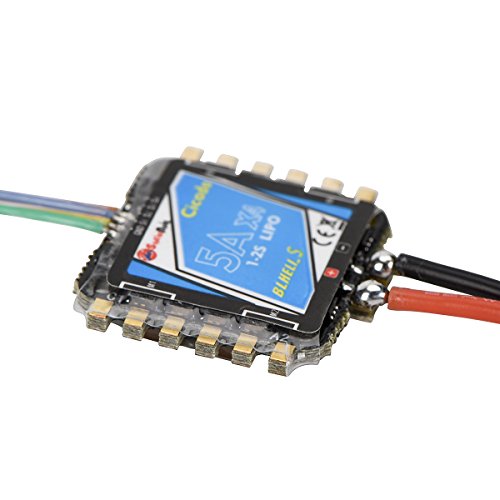

HOBBYMATE CICADA 5A/7A BLHELI_S 1-2S 4 IN 1 ESC 16X16MM FOR MICRO FPV RACING DRONE QUADCOPTER
- +++The Cicada 5A/7A 4in1 ESC is designed to stack underneath 16x16mm flight controllers.
- +++This 4in1 ESC has a 16x16mm bolt pattern just like the TinyFish and other micro FCs. Create a super light, super tight, and super clean build that will pack a serious punch! +++These ESCs have BusyBee2 chips, are BLHeli_S and DSHOT compatible. Please note this ESC goes to 2S max.
- +++These ESCs have BusyBee2 chips, are BLHeli_S and DSHOT compatible. Please note this ESC goes to 2S max.
- +++Totally new MCU that comes with a three channel PWM output specifically designed for motor control applications and runs at 48mhz
- +++New BLHELI_S firmware which provides all the strengths of the original BLHELI, but adds some significant improvements such as better response and smoother start up, 1000 steps of throttle input resolution, and auto-detection of the input signal protocol
HOBBYMATE CICADA 5A/7A BLHELI_S 1-2S 4 IN 1 ESC 16X16MM FOR MICRO FPV RACING DRONE QUADCOPTER

Features:
- Blheli_S firmware
- 16x16mm mounting hole
- Dshot600 in default out from factory
- All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- Chips on EFM8BB21F16,50MHZ
- The input signal is automatically detected by the ESC upon power up
- The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work

Higher quality MOSFETs with extremely low internal resistance
Three exceptionally fast dedicated MOSFET drivers
Extra capacitance to help remove EMF spikes and keep the rest of your equipment safe
Signal Auto Detect
Support Oneshot42, Oneshot125, Multishot and Dshot150, Dshot300.
Oneshot125 (125-250us)
Oneshot42 (42-84us)
Multishot (5-25us)
5A concurrent and 7A burst ratings ï¼ˆAccording to factory original description)

Specification:
Brand Name: Cicada
Item Name: 5A Blheli_S 1-2S 4 In 1 Brshless ESC
Con. Current: 5A
Peak. Current: 7A (10S)
BEC: NO
Lipo: 1-2S
Programming: YES
Weight: 2g
Size (PCB): 20x20mm
Mounting Hole: 16x16mm
Dia: M2

Package Included:
1x Cicada 5A 4 In 1 ESC
1x bag of screws
1x Cable
1x Manual
