Intel

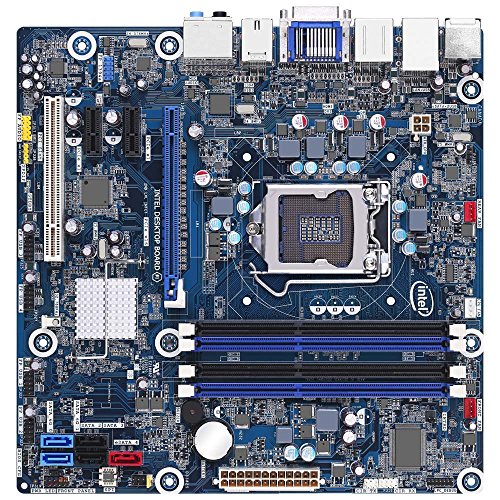

DH67GD H67 Socket 1155 mATX Motherboard w/HDMI/DisplayPort/DVI/Audio/eSATA

Free shipping with 3 or more products in your cart
Sold Out
Free shipping with 3 or more products in your cart
Secure checkout
Your payment is fully protected
Duties & VAT included
No surprise charges at the door
Tracked delivery
Track your order end to end
Returns support
30-day return window

Description

  • mATX form factor, Intel H67 Express chipset
  • Socket 1155 architecture, Integrated Graphics
  • Supports up to 16GB Dual DDR3 1066/1333
  • 10-channel (8 + 2) Intel High Definition Audio via the Realtek ALC892 audio codec
  • Intel 82579V 10/100/1000 Gigabit Ethernet LAN
Features:
  • mATX form factor
  • Intel H67 Express chipset
  • Socket 1155 architecture
  • Supports up to 16GB Dual DDR3 1066/1333
  • Integrated Graphics
  • 10-channel (8 + 2) Intel High Definition Audio via the Realtek ALC892 audio codec
  • Intel 82579V 10/100/1000 Gigabit Ethernet LAN

    Expansion Slots:
  • PCI Express 2.0 x16 slot, PCI Express 2.0 x1 slot, PCI slot, Four (4) 240-pin DDR3 DIMM slots

    Rear I/O Ports:
  • HDMI port, DisplayPort, DVI-I port, eSATA port, Six (6) USB 2.0 ports, Two (2) USB 3.0 ports, 6-pin FireWire port, RJ-45 Ethernet jack, SPDIF Audio, Five (5) 3.5 mm Audio jacks

    Internal Connectors:
  • IEEE 1394a front panel header, Processor core power connector (2 x 2), Rear chassis fan header, Processor fan header, Front chassis fan header, Chassis intrusion header
  • Low Pin Count (LPC) Debug header, Consumer IR emitter (output) header, Consumer IR receiver (input) header, 24-pin Main power connector, Piezoelectric speaker
  • Two (2) SATA 6.0 Gb/s connectors (blue), Two (2) SATA 3.0 Gb/s connectors (black), eSATA, Front panel header, Alternate front panel power LED header
  • BIOS Setup configuration jumper block, Four (4) Front panel USB 2.0 headers, Standby power LED, S/PDIF out header

    Supported Processors:
  • Intel Core i7, i5 and i3 processors with up to 95W TDP

    BIOS:
  • Intel BIOS resident in the SPI Flash device
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

    Hardware Monitor Subsystem:
  • Hardware monitoring through the Nuvoton Super I/O controller
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan headers
  • Two fan sense inputs used to monitor fan activity
  • Fan speed control

    Package Includes:
  • Intel DH67GD Intel H67 Socket 1155 mATX Motherboard only
