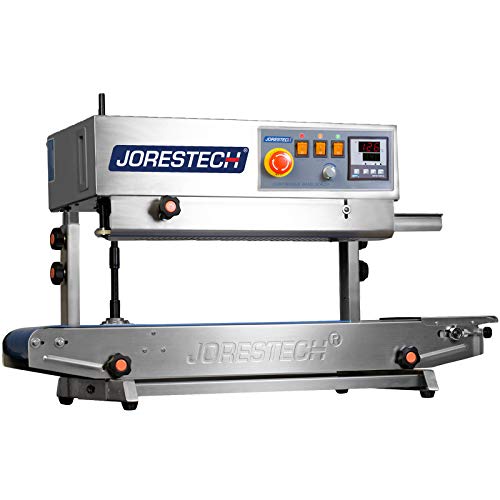

JORESTECH Continuous Band Sealer CBS-730I with Digital Temperature Control (Stainless Steel) VERTICAL/HORIZONTAL
Product Description
JORESTECH Continuous Band Sealer CBS-730I with Digital Temperature Control (Stainless Steel) VERTICAL/HORIZONTAL
- JORESTECH CBS-730 DIGITAL UNIVERSAL CONTINUOUS BAND SEALER FOR GENERAL BAG SEALING APPLICATIONS, Embossing Printing Coder Compatible.
- Industrial-grade machines designed for light-duty continuous bag sealing applications. These small yet powerful units will seal bags made with thermoplastic materials including Polyethylene (PE), Polypropylene (PP) and heat-sealable laminations. JORESTECH’s 700 Series Continuous Band Sealers are capable of sealing a wide range of bags such as stand-up pouches (Doypack), gusseted bags, pillow-type bags, sachets, barriers bags, etc.
- Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters
- Makes strong, professional-looking airtight seals like those made by costly high-speed automatic systems
- Seals thermoplastic materials including Polyethylene (PE), Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane)
Features:
All-in-one continuous high-speed bag sealing system.
Capable of speeds of up to 54 ½ ft/min (16 mt/min), depending on product/bag seal characteristics.
Includes motorized belt conveyor with synchronized speed adjustment.
Extremely easy to use.
Characteristics:
Non-stick woven PTFE-type guide belts.
Extra wide (10mm) seal
Bag height range: 5 - 11 inches (125 - 280 mm H)
Equipped with electronic adjustable speed control.
Adjustable 2-Way pulley system for optimal bag stability and embossing clarity.
Equipped with bag entry guide for easy bag feeding and straight seals.
Sealing method: constant heat.
PID Digital Temperature Controller: 0 - 300°C (572°F) with dual alphanumeric displays (target & current temperature)
Control panel includes E-Stop (industrial quick-stop switch)
Rust-inhibiting Stainless Steel construction.
Dual-orientation system includes vertical & horizontal conversion kits (Can be used as horizontal & vertical Band Sealer)
Conveyor height from conveyor to center of sealing belt (at vertical configuration): 114 to 254 mm (4 ½ inches to 10 ½inches)
Other Specifications:
Voltage: 110V/50-60Hz.
Power: 650 Watts.
10 amp protection power surge breaker.
Machine Size: 880mm (34.6 inches) L x 380mm (15 inches) W x 550mm (21.6 inches) H
Machine Weight: 60 lbs (27Kg)
Boxed Size: 965mm (38 inches) L x 521mm (20.5 inches) W x 419mm (16.5 inches) H
Boxed Weight: 76 lbs (35Kg)
