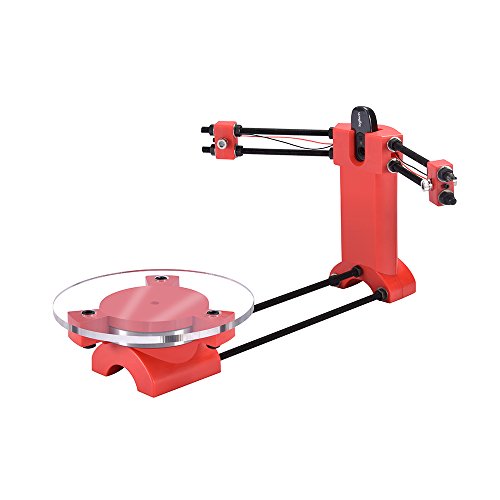

KINGPRINT Ciclop Open Source 3D Scanner Desktop DIY Kit for 3D

KINGPRINT Ciclop Open Source 3D Scanner Desktop DIY Kit for 3D Printer Advanced Laser Scanner, Injection Molding Plastics Parts
- Totally open source 3D scanner for 3D printing, free to get the software.
- Ciclop has been designed with the setup process in mind. The kit includes all the necessary pieces and a step-by-step assembly guide, enabling you to set it up in less than an hour.
- Ciclop is a 3D rotational laser triangulation scanner. It uses 2 lasers projected over an object to capture the geometry and texture as it rotates on a turntable.
- ZUM BT-328 executes the control firmware of the motor and the lasers. ZUM SCAN, a shield derived from Arduino CNC Shield, is connected at the top of the scanner.
- The ZUM BT-328 board, based on ArduinoTM, includes improvements and better features than other similar boards, which make it the best option for developing electronics projects.
Ciclop is a desktop 3D scanner and is not suitable for scanning irregularly complex objects. It cannot be compared to industrial-grade 3D scanners.
When scanning objects close to the cylinder, the effect will be ideal. The scanning quality is affected by objects, the environment, and the light, so we recommend scanning in our constant light studio. And the installation needs to have their own hands-on ability.
-Compared with printed plastic parts, You do not need to fix it
-The surface of injection molding plastic parts is more smooth and clean
-It is more easy to install
-It is more durable than plastic parts
-You can stable the board on this plastic parts

Package Included:
1*Arduino uno controller
1*ZUM Scan Expansion board
1*A4988 stepper drive chip
1* 720 HD camera
2*Laser
1* 42 stepper motor
1*16014 bearing
1*12V, 2A adapter
1*200mm acrylic chassis

1*acrylic Calibration board
1*standard sticker
1*black Winding tape
6*mats
2*M8*400mm screw
4*M8*170mm screw
1*M8*292mm screw
10*M3*10 screw
10*M3 nut
3*M8*10mm screw
28*M8 nut
18*M8 washer

Note:
1.Object space volume is bigger than 5*5cm
2.Object space volume is smaller than 20.3cm*20.3cm
3.Object weight is less than 3kgs
4.Still object
5.Opaque object

Country	USA
Brand	KINGPRINT
EAN	0603894529741
IsAutographed
IsMemorabilia
Label	KINGPRINT
Manufacturer	KINGPRINT
MPN	KINGPRINT-CSM000001A
PartNumber	KINGPRINT-CSM000001A
Publisher	KINGPRINT
Studio	KINGPRINT
ReleaseDate	0000-00-00

KINGPRINT Ciclop Open Source 3D Scanner Desktop DIY Kit for 3D Printer Advanced Laser Scanner, Injection Molding Plastics Parts
