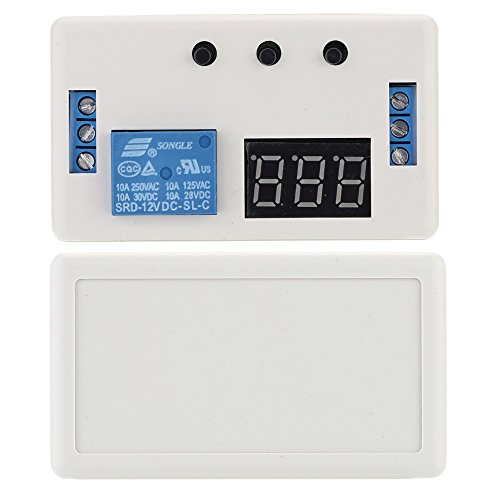

KKmoon 12V LED Automation Delay Timer Control Switch Relay

KKmoon 12V LED Automation Delay Timer Control Switch Relay Module with Case
- New upgrades to simplify, meeting the users' needs.
- Increase the power supply anti-reverse function.
- The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
- The last setting parameters can be memorized after power off.
- Signal terminal voltage signal can be maintained for a long time.
1Features:
New upgrades to simplify, meeting the users' needs.
Increase the power supply anti-reverse function.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
Signal terminal voltage signal can be maintained for a long time.
To ensure stability, industrial grade PCB board.

Notice:
Relay output is passive contact without charge output, and it control the on and off of the line.

Specifications:
Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes
Working Voltage: DC 12V
Signal Voltage: DC 4~20V
Output Capacity: Can Control the Load within DC 30V 5A or AC 220V 5A
Static Current: 20mA
Working Current: 50mA
Working Temperature:Â -40-85Â°C
PCB Size: 64 * 35 * 18mm / 2.52 * 1.4 * 0.7in (L * W * H)
PCB Weight: 25g / 0.89oz
Case Size: 68 * 40 * 2 2mm / 2.67 * 1.57 * 0.86in (L * W * H)
Product Weight(With Case): 42g / 1.49oz
Package Size: 11.5 * 7 * 2.2cm / 4.53 * 2.75 * 0.86in (L * W * H)

Package List:
1 * Delay Timer Module with Case

English User Manual:
https://www.dropbox.com/s/po70ekdpdwo9itw/E1024%20Series%20and%20E1019-User%20Manual-English.doc?dl=0
