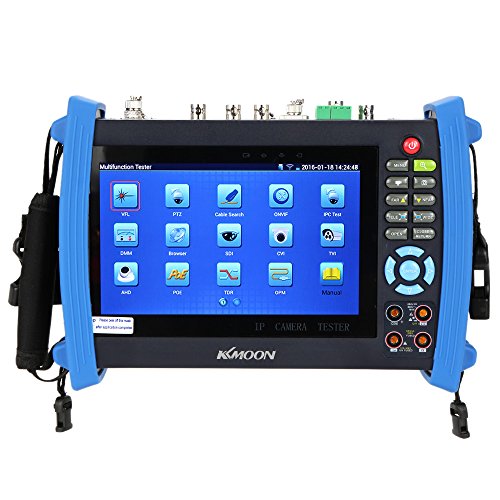

KKmoon 7 inch Touch Screen 1080P HDMI IP Camera CCTV Onvif

KKmoon 7 inch Touch Screen 1080P HDMI IP Camera CCTV Onvif Tester Monitor AHD/SDI/TVI/CVI PTZ/POE/WIFI/DMM/TDR/Cable Tracer/Optical Power Meter/Visual Fault Locator IPC-8600MOVTSADH
- ONVIF IP camera test, image display, zooms, video record and playback, PTZ control
- SDI/TVI/CVI/AHD camera test, image display, zoom, video record and playback, Coaxial PTZ control, support 720P/1080P input
- Analog camera image display, auto adapt and display the video format of NTSC/PAL
- Built in 150Mbps Wi-Fi, can receive image from ONVIF wireless camera
- Support more than 80 brand cameras, like Dahua, HIKVISION, ACTI etc, compatible with H.264/MPEG4/MJPEG IP cameras
Specifications
Display: 7 inch capacitive touch screen, resolution 1024(RGB) * 600
IP Camera Type Supported: ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300Tetc, up to 80 brands camera PTZ control: Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
SDI Video Signal Test: 1 channel SDI input (BNC interface), resolution support 720p 60fps / 1080p 30fps / 1080i 60fps
CVI Video Signal Test: 1 channel CVI input(BNC interface), resolution support 720p 25,30,50,60fps / 1080p 25,30fps
TVI Video Signal Test: 1 channel TVI input(BNC interface), resolution support 720p 25,30,50,60fps / 1080p 25,30fps
AHD Video Signal Test: 1 channel AHD input(BNC interface), resolution support 720p 25,30fps / 1080p 25,30fps
System Languages: English, Spanish, Italian, Russian, Polish, Korean, Chinese
User Manual Language: English

Package List
1 * IP Camera Tester (with E-user manual inside)
1 * 7.4V 6500mah Li-po Battery
1 * US Plug Power Adapter
1 * Cable Tracer (2*AAA batteries not included)
1 * SC, ST Connector (for optical power meter function)
1 * Test leads (for Multi-meter function)
1 * TDR Test Cable (for TDR test or cable trace function)
1 * Output Power Cable
1 * Audio Test Cable
1 * BNC Cable
1 * RS485 cable
1 * 4GB SD card
1 * Tool Bag
1 * Bandage

Country	USA
Binding	Electronics
Brand	KKmoon
EAN	0602747299947
Label	KKmoon
Manufacturer	KKmoon
ManufacturerPartsWarrantyDescription	Parts
MPN	KK-S719-70
PartNumber	KK-S719-70
Publisher	KKmoon
Size	IPC-8600MOVTSADH
Studio	KKmoon
ReleaseDate	0000-00-00

KKmoon 7 inch Touch Screen 1080P HDMI IP Camera CCTV Onvif Tester Monitor AHD/SDI/TVI/CVI PTZ/POE/WIFI/DMM/TDR/Cable Tracer/Optical Power Meter/Visual Fault Locator IPC-8600MOVTSADH
