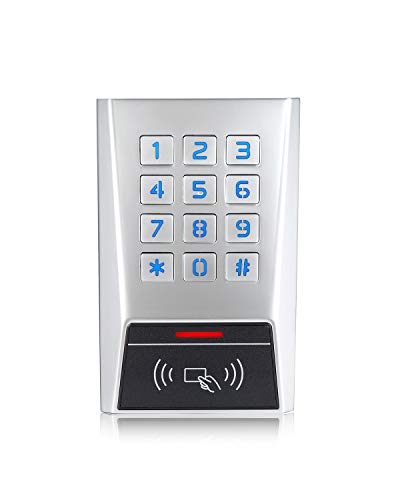

LONGWO BK2-EH Access Control Keypad Door Entry Device Gate

LONGWO BK2-EH Access Control Keypad Door Entry Device Gate Opener Keypad Rugged Metal Waterproof Housing Read HID and EM Card Wiegand Input/Output
- IDEAL FOR ANY OUTDOOR FACILITY - Rugged and vandal-proof design, PCB is sealed in epoxy completely, making it is ideal for any outdoor facility or modern indoor office space
- WIDE RANGE OF POWER INPUT - Not only DC12-24V but also AC12-24V can power this access control keypad
- 4 KINDS OF ACCESS MODE - Users can open the door or gate by Card or PIN, card + PIN, only card, multi cards/PINs. Built-in 125KHz reader, reading EM and HID cards
- UNIVERSAL FOR GATE OPENER OF GARAGE, WAREHOUSE - Built-in relay, dry contact output, and the output time can be set from 50ms - 99s. Also the relay can be set to ON/OFF Toggle Mode. Working Temp.: -40°F ~ 140°F (-40°C ~ 60°C)
- BACKLIGHT OF THE KEYS AND SALIENT POINT ON KEY 5 - Easy to operate at night. And there is a salient point on key 5, making the blind can also open the door by pin
Introduction
BK2-EH is RFID Access control Keypad for single door, and it can be work as Stand-Alone or Wiegand Reader. With the heavy-duty, vandal-proof metal housing, it is a perfect device for any outdoor facility or modern indoor office space.

Features and Benefits
Rugged, Waterproof conforms to IP67, Anti-Vandal metal housing
10 group of anti-duress users in case of encounter danger
Wide range of power input: 12-28V AC & DC
Backlit keypad, convenient for operation in darkness
User data can be copied between the same model
2 devices can be interlocked for 2 doors
Support 125KHz EM cards and 125KHz HID cards

Specifications
User Capacity: 1010 (including 10 group of anti-duress users)
Operating Voltage: 12 - 28V AC & DC
Idle Current: <35mA
Lock Output Load: 2Amp
Alarm Output Load: 2Amp
Card Type: 125KHz EM card and 125KHz HID card
Read Range: 3 - 10cm
PIN length: 4 - 6 digits
Wiegand input & output: 26 - 37 bits, factory default is 26 bits
Keys output: 4 bits, 8 bits, 10 digits virtual card number, factory default is 8 bits
One relay (NO/NC/COM), keyboard programmer
Weatherproof: IP67
Material of housing: Strong Zinc-alloy
Operating Temperature: -40Â°F ~ 140Â°F (-40Â°C ~ 60Â°C)
Operating Humidity: 0 ~ 98% RH
Dimension: 115*75*23mm
Shipping Weight: 460g

Packing List
1 * Access Control
1 * Installation Kit
1 * English User Manual
1 * Admin Add Card
1 * Admin Delete Card

Country	USA
Binding	Electronics
Brand	LONGWO
EAN	0786784828756
Label	YouFores Technology Limited
Manufacturer	YouFores Technology Limited
Model	BK2-EH
MPN	BK2-EH
PartNumber	BK2-EH
Publisher	YouFores Technology Limited
Studio	YouFores Technology Limited
ReleaseDate	0000-00-00

LONGWO BK2-EH Access Control Keypad Door Entry Device Gate Opener Keypad Rugged Metal Waterproof Housing Read HID and EM Card Wiegand Input/Output
