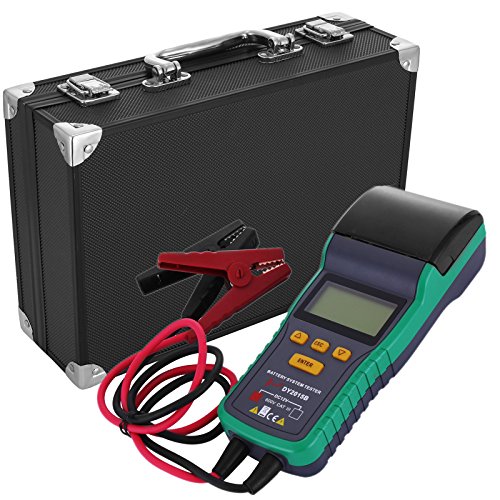

LOVSHARE Battery Tester 12V Battery Analyzer with Printer 30AH-200AH Automotive Battery Tester Digital Battery and System Health Tester for Car Truck Lead-acid Starting Battery

This professional tester DY2015B is extremely designed for 12V lead-acid storage battery within the process of vehicle starting up, charging, and electrical loading. This tester with printer is the best tool for battery sales, vehicle repair and condition check of all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery.
The battery analyzer strengthens input protection inside, in order to prevent such situations as polar reversal connection, over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.

SPECIFICATION :
CCA RANGE: 100-1700
IEC RANGE: 100-1000
EN RANGE: 100-1700
DIN RANGE: 100-1000
Measure the voltage range: 12V (12V-24V)
Battery range: 30AH-200AH
voltage range: 9-18V
Operating temperature range: from -18 Degrees Celsius to 50 Degrees Celsius
Display Battery Internal Resistance: ohms
Display Battery Voltage: volts
Display Battery Condition: good / OK / pay attention / replace
Test Method: Kelvin Four-terminal sensing

INTELLIGENT TEST FUNCTION :
Test 12V Battery
Battery test: cold cranking amps, battery resistance, voltage, life analysis
Engine system test: the change of battery system with the process of startup
Charging system test: charging system working state of the output
Maximum load system test: the maximum load state of battery

APPLICATION RANGE
All car / truck lead-acid starting battery, including regular flooded, EFB, GEL, AGM spiral, AGM flat plat

PACKAGE :
DY2015B battery tester with printer: 1 pcs
Testing cable: 1 pcs
Thermal roll: 1 pcs
Solid packing case: 1 pcs
