Light Harmonic DaVinci MK II Bit perfect R2R Digital to Analog

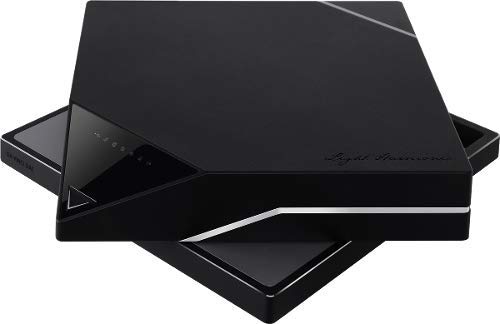

Light Harmonic DaVinci MK II Bit perfect R2R Digital to Analog Convertor for high-res audio
- [DEDICATED DUAL ENGINES] Da Vinci MKII's second decoding engine is a pure Delta-Sigma DAC capable of decoding DSD signals up to DSD256.
- [QUAD + DUAL FEMTO CLOCKS] 44.1K & 48K Sample Rates via USB Da Vinci MKII's first division of tasks has to do with which sample rate it's receiving. It uses one clock for music sampled at a rate that's a multiple of 44.1 kHz, and another for music sampled at a rate of a multiple of 48 kHz. Dual Mono DSD Decoding via USB The next two femto clocks are used in its DSD decoding engine: one clock for each leg of the dual mono topology. Dual Mono via S/PDIF & AES The final two femto clock are used in
- [UNIQUE DIGITAL FILTER MODES] Da Vinci DAC MKII doesn't use a single digital filter in PCM mode, one of the many benefits of using a resistor ladder. It does use one analog filter in PCM mode: a 50 kHz bessel 3rd analog filter. PCM mode also uses our auto-duet engine, which utilizes analog interpolation to effectively double PCM sample rates without digital filters. In DSD mode, Da Vinci DAC MKII has two unique digital filters. Time Coherence Mode and Femto Time Mode.
- [FEMTO FUSION] In digital audio decoding, there are two major enemies: bad timing and noise. With our 4+2 femto clocks, we attack the issue of timing. With our Femto Fusion Injection Technology, we're able to reduce the overall 1 MHz bandwidth's jitter to 68 femtoseconds (PCM) and 97 femtoseconds (DSD), which is a 74% improvement over Da Vinci Dual DAC's already stellar performance. With Femto Fusion Injection Technology, we've pushed clock jitter to the lowest we've ever seen or measured in any
- [ANALOG CIRCUIT INNOVATION] Da Vinci DAC MKII uses next-generation class A shunt regulators with high bias and an ultra low noise JFET. Next, we added four Texas Components naked zero inductance resistors in both the PCM and DSD circuit. A dual mono, fully balanced architecture from DAC conversion to individual analog output takes advantage of three of the quietest R-core transformers in the world with 12 new zero switching noise diodes in the power supply. Everything is topped off with dual JFE
Specifications: -Type; Digital-to-Analog Converter -Finish Options; Standard: Black,Upgrade: Silver -Dimensions; 18.5" (L) x 18.5"(W) X 7.87" (H) -Weight; 61 lbs/28.0 kg -Converter Types; PCM: Da Vinci R2R architecture,DSD: Delta-Sigma with two-layer jitter reduction -Analog Outputs; Output Levels: 2.05V rms unbalanced / 4.1V rms balanced.Balanced Outputs - 1 stereo pair on 3-pin male XLR connector (pin 2 hot).Unbalanced Outputs - 1 stereo pair on RCA Phono connector -Digital Inputs; 1x Asynchronous USB 2.0 interface on standard USB-B connectors. Will accept up to 32 bit PCM at 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384K, , plus 128x DSD.Asynchronous AES/EBU on 3-pin female XLR connectors. Will accept up to 24 bit PCM at 44.1, 48, 88.2, 96, 176.4, 192K S/s 1x Asynchronous SPDIF on one RCA Phono connectors. Will accept up to 24 bit PCM at 44.1, 48, 88.2, 96, 176.4, 192K S/s -Clock Frequencies; 3X Clock architecture without PLL. TCXO with -166 dBc/Hz @ 10MHz. 45.1584M Hz for 44.1, 88.2, 176.4, 352.8K Mode. 49.152M Hz for 48, 96,192,384K Mode. 13M Hz for USB interface -THD+N (unweighted) PCM:Better than 0.0018%Frequency range: 20Hz - 20kHz DSD:Better than 0.0012%Frequency range: 20Hz - 20kHz LSB Auto-Correction Always enabled (PCM) Residual Noise(unweighted) Better than -115dB @ 20Hz - 20kHz Residual Noise(A-weighted) Better than -125dB @ 20Hz - 20kHz -Channel Separation; (Crosstalk) -142dBFS @ 10kHz Filters PCM:Digital Filters: None. User selectable Analog Filter: -3dB @ 100K Hz.DSD: Digital Filters: Corner frequency @ 45 kHz User selectable Analog Filter: -3dB @100K Hz. -Power Supply; Factory set for 115~120 , 220~230 V AC, 49 - 62Hz -Power Consumption; 2 Watts in Standby mode/ 65 Watts operational maximum * DSD playback via USB 2.0 is supported by the latest DoP (DSD over PCM) standard
Country USA
Brand Light Harmonic
Color Black Silver
EAN 0656727801460
IsAutographed 0
IsMemorabilia 0
Label Light Harmonic
Manufacturer Light Harmonic
Publisher Light Harmonic
Studio Light Harmonic
ReleaseDate 0000-00-00

Country	USA
Brand	Light Harmonic
Color	Black Silver
EAN	0656727801460
IsAutographed	0
IsMemorabilia	0
Label	Light Harmonic
Manufacturer	Light Harmonic
Publisher	Light Harmonic
Studio	Light Harmonic
ReleaseDate	0000-00-00

Light Harmonic DaVinci MK II Bit perfect R2R Digital to Analog Convertor for high-res audio
