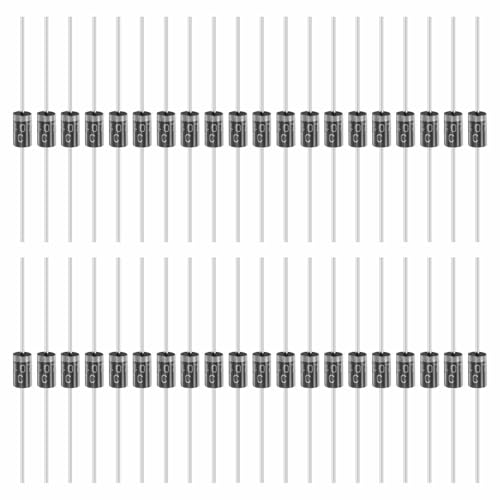

MECCANIXITY 100 Pcs 1N5407 Rectifier Diode, 3A 800V DO-27

MECCANIXITY 100 Pcs 1N5407 Rectifier Diode, 3A 800V DO-27 Electronic Silicon Diodes for Charger Industrial Power Adapter Supply Inverter Switching Power Supply
- These are straight-plug planar silicon diodes for rectification. These diodes are designed for use in chargers, industrial power supplies, motor drives, inverter switching power supplies, and more.
- Model: 1N5407; Package Type: DO-27; Forward Current: 3A; Maximum Repetitive Peak Reverse Voltage: 800V; Overall Size: 57mm x 5mm/2.24" x 0.2"(L*W); Quantity: 100 × Rectifier Diodes
- The Diode for Rectification features a classic axial lead design, simplifying both manual soldering and automated assembly. The rugged casing resists mechanical stress, while the straight-lead configuration ensures secure PCB mounting, reducing the risk of vibration-induced failures in portable devices. These diodes feature low reverse and high forward current capability and can withstand high-temperature soldering.
- Align the diode pins with the through-holes on the circuit board and insert them vertically. Slightly bend the exposed portion of the pins. Use a soldering iron and solder to solder the pins to the circuit board pads. After soldering, use diagonal pliers to cut off the exposed portion of the pins.
- Before installation, check the markings on the circuit board to ensure that the direction of the diode is consistent with the circuit design. Ensure that the solder joints are full, without cold solder joints or short circuits, and the roots of the pins must be completely covered with solder.
Country USA
Brand MECCANIXITY
Manufacturer MECCANIXITY
ItemPartNumber mea250811ee000213
UnitCount 100
ReleaseDate 0000-00-00

Country	USA
Brand	MECCANIXITY
Manufacturer	MECCANIXITY
ItemPartNumber	mea250811ee000213
UnitCount	100
ReleaseDate	0000-00-00

MECCANIXITY 100 Pcs 1N5407 Rectifier Diode, 3A 800V DO-27 Electronic Silicon Diodes for Charger Industrial Power Adapter Supply Inverter Switching Power Supply
