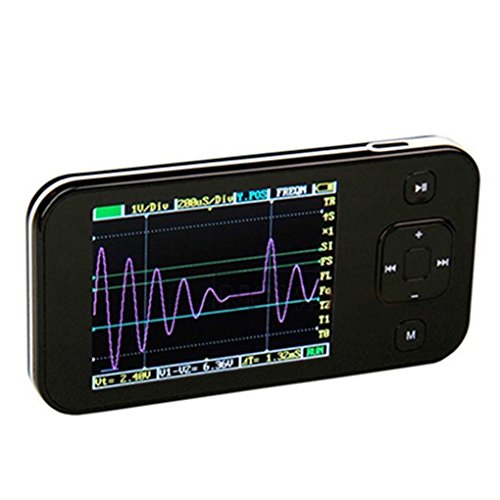

M-Egal Arm Dso201 Pocket-Sized Digital Storage Oscilloscope

M-Egal Arm Dso201 Pocket-Sized Digital Storage Oscilloscope 105Mm*53Mm*8Mm
- Display Resolution 320¡Á240.
- Max sample rate 1Msps 12Bits .
- Sample memory depth 4096 Point .
- Vertical sensitivity 10mV/Div¡«10V/Div (with ¡Á1 probe) .
- Max input voltage 80Vpp (by ¡Á1 probe) .
Display Color 65K.
Display 2.8" Color TFT LCD.
Display Resolution 320Â¡Ã240.

Analog bandwidth 0 - 1MHz .
Max sample rate 1Msps 12Bits .
Sample memory depth 4096 Point .
Horizontal sensitivity 1uS/DivÂ¡Â«10S/Div (1-2-5 Step) .
Horizontal position adjustable with indicator .
Vertical sensitivity 10mV/DivÂ¡Â«10V/Div (with Â¡Ã1 probe) .
0.5V/DivÂ¡Â«100V/Div (with Â¡Ã10 probe) .
Vertical position adjustable with indicator.
Input impedance >500KÂ¦Â¸ .
Max input voltage 80Vpp (by Â¡Ã1 probe) .
Coupling DC .
Trig modes Auto, Norma, Single, None and Scan .
Functionalities: Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage .
Precise vertical measurement with markers .
Precise horizontal measurement with markers .
Rising/falling edge trigger .
Trig level adjustable with indicator .
Trig sensitivity adjustable with indicator .
Hold/run feature .
Test signal Built-in 10HzÂ¡Â«1MHz (1-2-5 Step).
Power supply 3.7V Chargeable Lithium battery / USB .
Dimension (w/o probe) 105mm X 53mm X 8mm.
Waveform storage SD card PC connection via USB as SD card reader Upgrade by boot loader via USB.

Packing Included:
1 x ARM Digital Oscilloscope (Fig.1) (3.7v cell inside).
1 x Probe.
1 x Mini USB Cable.
