MakerFocus ESP32 Development Board WiFi Bluetooth LoRa Dual

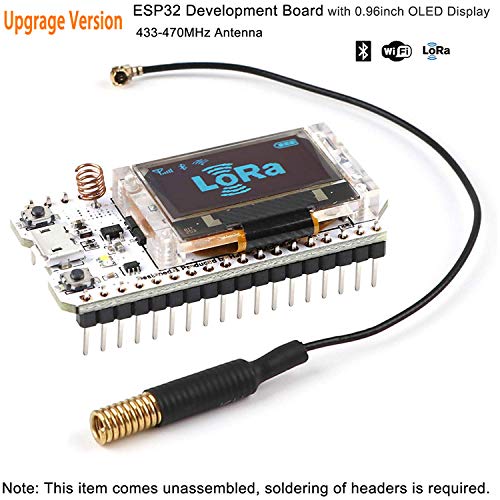

MakerFocus ESP32 Development Board WiFi Bluetooth LoRa Dual Core 240MHz CP2102 with 0.96inch OLED Display and 433/470MHz Antenna Upgrade Version for Arduino
- ★Note: This item comes unassembled, soldering of headers is required. Lithium battery is not included, battery may be purchased here: https://www.amazon.com/dp/B07CXNQ3ZR; Link to download English documentation and pinout diagram: https://www.adrive.com/public/drzr3P/datasheet%20F000905.rar, https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
- ★Upgrade ESP32 LoRa development board with 433/470MHz antenna, full support for the LoRaWAN protocol, it with better features: ※Perfect impendence matching; ※Low power design; ※Fixed all known bugs; ※More stable; ※Flash size: 8Mbyte; ※Others: Optimized impedance matching, Optimized circuit design, Optimized charging indicator, Enhance device stability
- ★It supports Sniffer, Station, softAP and Wi-Fi Direct modes. This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa remote modem, 433MHz frequency, about -139dBm high sensitivity, +20 dBm power output
- ★High reliability, transmission distance (measured open area communication distance 3.6Km). Receiver sensitivity up to - 139 dBm,UDP continues to throughput by 135 Mbps; ESP32 oled display, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip
- ★We Have a Strong After-sales Service Team: As long as you have any questions about the product, we will resolve your issue immediately if received your email, your satisfactory purchase experience is our greatest hope! How to email us? Plz click "MakerFocus" and click "Ask a question" to email us! Looking forward to your consultation!
Uprade ESP32 Development Board WIFI Bluetooth LoRa Dual Core 240MHz CP2102 with 0.96inch OLED Display and 433/470MHz Antenna for Arduino

Description:
WIFI Kit series is the new development cost-effective networking program of our company, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa remote modem, 433MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 3.6Km).

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Specification:
Operating voltage: 3.3V to 7V
Operating temperature range: -40 Â° C to + 90 Â° C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11b
Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n
Receiver sensitivity up to - 139 dBm
UDP continues to throughput by 135 Mbps

Package Including
1 * Upgrade ESP32 Development Board with OLED
1 * 433/470MHz Antenna
1 * Pin sticker
2 * Pin headers

Country	USA
Binding	Electronics
Brand	MakerFocus
Color	433/470MHz
EAN	0190033873068
Label	MakerFocus
Manufacturer	MakerFocus
MPN	I2GA2914KA02HAQ1DD
PartNumber	I2GA2914KA02HAQ1DD
Publisher	MakerFocus
Studio	MakerFocus
ReleaseDate	0000-00-00

MakerFocus ESP32 Development Board WiFi Bluetooth LoRa Dual Core 240MHz CP2102 with 0.96inch OLED Display and 433/470MHz Antenna Upgrade Version for Arduino
