Mercury Marine BlackMax 3 Blade Aluminum Prop Propeller 13-1/4 x 17P 48-77344A45

Sold Out / Out of Stock

Please be aware orders placed now will not arrive in time for Christmas, please check delivery times.

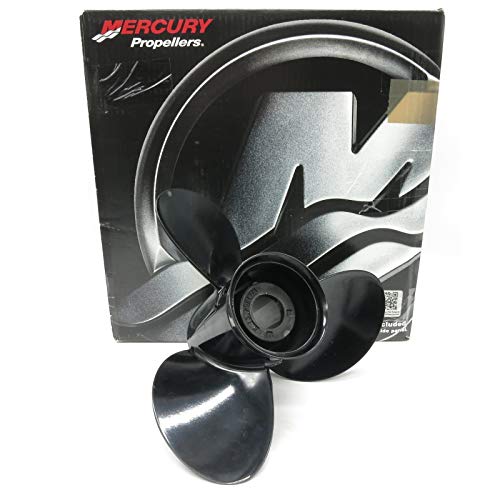

Mercury Marine BlackMax 3 Blade Aluminum Prop Propeller 13-1/4 x 17P 48-77344A45
Boat part number 1074484 is a new Black Max 3 blade 13 1/4 x 17 pitch, right propeller with hub kit from Mercury, part number 48-77344A45 .

The Black Max series of propellers are constructed from black powder coated aluminum and are recommended for boats with up to 250HP and a top speed of less than 50MPH.

This is a 13 1/4 x 17 pitch, 3 blade right hand propeller. It measures approximately 4 3/8" OD across the back of the hub.

This propeller includes the following hub kit, part number unavailable (all measurements approximate):
- Bushing - 2" W x 2" H x 3 1/2" L
- 15 Spline Hub - 1 3/4" Dia. x 4 3/8" L
- Washer - 2 5/8" OD / 1" ID
- Threaded Nut - 1 1/8" OD x 7/8" H / 3/4" ID
- Attaching Ring - 1 5/8" W x 1 3/4" H / 3/4" ID
Specifications:
- Part Manufacturer: Mercury
- Series: Black Max
- Part Number: 48-77344A45
- UPC:Â 745061018471
- Material: Aluminum
- Color: Black
- Finish: Glossy
- Size: 13 1/4 x 17 pitch
- Rotation: Right
Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.

Hardware and instruction / installation manual not included.
Country USA
Brand Quicksilver
Manufacturer Boating Accessories
Binding Misc.
ItemPartNumber 77344A45
UPCs 745061018471
EANs 0745061018471
ReleaseDate 0000-00-00
