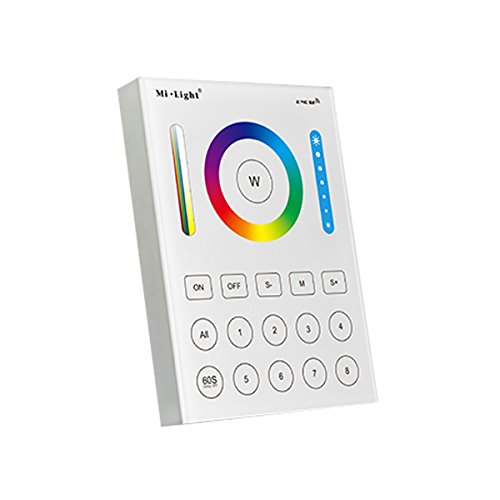

Mi-Light B8 2.4G Wall Mount Panel Remote Controller 8 Zones

Mi-Light B8 2.4G Wall Mount Panel Remote Controller 8 Zones RGB+CCT Touch Controller Fit for LS2 or 6W/12W RGB+CCT LED Celling Lamp, GU10/MR16 RGBCCT Bulbs

Tips:It can not work with 6W RGBCCT celling light.

Product Name: 8-Zone Smart Panel Remote Controller
Model No.: B8
Working Temperature: -20 -60â„ƒ
Voltage: 3V(2*AAA Battery) / DC3.3V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 30A
Panel Size: 106*146*20mm

Linking instructions:
1.Click the zones1-8 button you want to link,the corresponding indicating lamp will shine.
2.Switch off the power,after 10 seconds switch on again.
3.When te light on,short press "ON" 3 times within 3 seconds.
4.The light blinks 3 times slowly means the linking is done successfully.
If the light not bink slowly,the linking failed, Pls switch off the light again, and follow the above steps again.

Unlinking instructions:
1.Click the zones 1-8 button you want to unlink,the corresponding indicating lamp will shine.
â¤Unlinking must be the same zone with the Linking
2.Switch off the power,after 10 seconds switch on again.
3.When te light on, press "ON" 3 times within 3 seconds.
4.The light blinking 10 times quickly, means the unlinking successfully.
If the light not bink quickly,the linking failed, Pls switch off the light again, and follow the above steps to unlink again.

Package:
1 X B8 Panel Remote Controller
1 X Installation kit
1 X Manual
Country USA
ItemPartNumber 14201822
Model SL-lan
Color RGB (Red, Green, Blue)
UnitCount 2
UPCs 759974854392
EANs 0759974854392
ReleaseDate 0000-00-00

Country	USA
ItemPartNumber	14201822
Model	SL-lan
Color	RGB (Red, Green, Blue)
UnitCount	2
UPCs	759974854392
EANs	0759974854392
ReleaseDate	0000-00-00

Mi-Light B8 2.4G Wall Mount Panel Remote Controller 8 Zones RGB+CCT Touch Controller Fit for LS2 or 6W/12W RGB+CCT LED Celling Lamp, GU10/MR16 RGBCCT Bulbs
