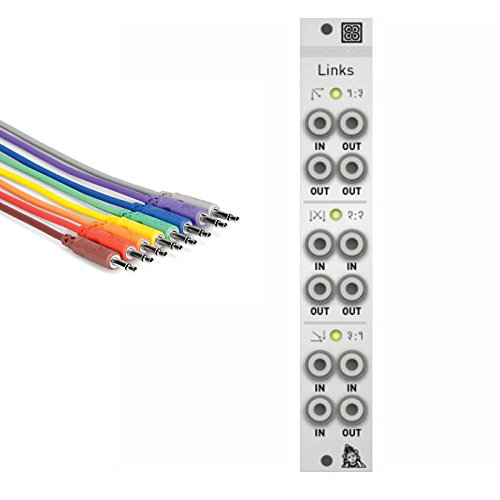

Mutable Instruments Links Multiples and Mixing Eurorack Module with Cables

Links provides 3 utility functions focused on signal distribution and mixing. 1:3 is a 3-output buffered multiple, with an offset error < 0.1%. It is useful for distributing the voltage from a CV output with a large protection resistor to several modules - particularly VCOs. 2:2 is a 2-input summer with unity gains. The sum of the two input channels is distributed to 2 outputs. 3:1 is a 3-input mixer with a gain of 1/3 for each channel (averager). It is particularly suitable for rapidly mixing audio sources such as oscillators, for which a unity gain mixer would have caused clipping. A 2-color output monitoring LED is available for each of these functions. These Hosa 3.5 mm TS Patch Cables are designed to interconnect pro audio gear with unbalanced mini phone jacks. They are ideal for use with modular synthesizers and sound modules.
