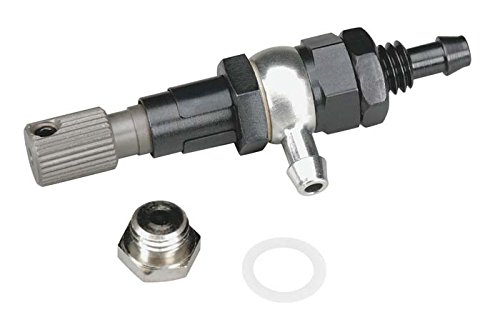

O.S. Engines 23882900 Remote Needle Assembly .21 RZ-M

O.S. Engines 23882900 Remote Needle Assembly .21 RZ-M

This is the complete, optional Remote Needle valve assembly for the / O.S.21RZ-M engine. / / Features:-Sturdy -L- shaped needle mount w/nut. #OSMG8339 / -Aluminum inlet nipple. / -Steel Needle holder with outlet nipple on other end. / -Standard .21RZ-M Needle #OSMG7025 / -Sturdy aluminum control horn. This horn looks like a servo horn with / two arms at a 90Deg offset. This horn locks on the needle with a set / screw, and allowes Needle adjustments with a servo. / -A chromed brass threaded plug w/gasket. / / Includes: 1 -L- shaped Needle mount ///// 2 round gaskets (1 paper-1alum.) / 1 aluminum fuel nipple ///// 2 steel nuts / 1 aluminum control horn ///// 2 1.5mm set screws / 1 Needle holder/nipple ///// 1 needle -O- ring. / 1 ratchet spring / 1 Threaded plug see other side for comments +++++ / Comments: O.S. has made this an optional part for the O.S. 21RZ-M engine, but / this part will also work with several .O.S. engines. This will fit / most O.S engines that have the FUEL INLET NIPPLE MOUNTED ON THE / CARB BODY. / / . 11/1/96 SJM.
