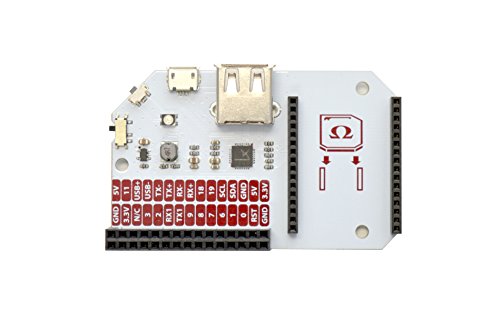

Onion Expansion Dock for Omega2

Onion Expansion Dock for Omega2
- Provides an easy way to safely power the Omega (sold separately) with any Micro-USB cable
- Breaks out the Omega's GPIO pins so that you can use them to control external circuits and devices
- The built-in USB-to-serial chip that allows you to access the Omega's terminal directly
- Allows you to connect Omega Expansion boards to extend the functionality of your Omega
- Features a USB Type-A port, programmable RGB LED, power switch, a reset button,
The Expansion Dock is the perfect companion for the Omega, making it incredibly convenient and easy to use as well as exposing a variety of the Omega's features. Provide power to the Omega and Dock with any Micro USB cable. The Dock includes a regulator circuit that ensures the Omega always receives the stable 3.3V it needs to operate optimally. The Dock exposes several of the Omega's features to the user: The Omega's GPIOs are exposed on the Expansion Header, use the header to plug in Onion Expansions or connect to external circuits; Connect USB devices directly to your Omega; Control the RGB LED on the Dock using the Omega's GPIOs; Press the Reset Button to reboot your Omega, hold it for 10 seconds to perform a factory restore; Turn your Omega on and off with the Power Switch. Since the Expansion Header breaks out the Omega's GPIOs, the Expansion Dock is compatible with all Omega Expansions, allowing you to extend the functionality of your Omega by connecting one of our plug and play Expansions. Thanks to the on-board USB-to-Serial chip, you will always have access to the Omega's serial terminal. No network connectivity required, just a solid USB connection. The serial terminal is especially handy when accessing the bootloader to reflash your Omega.

Country	USA
Binding	Personal Computers
Brand	Onion
EAN	0636276891716
Label	Onion
Manufacturer	Onion
Model	Omega2_Expansion_Dock
MPN	OM-D-EXP
PartNumber	OM-D-EXP
Platform	No Operating System
Publisher	Onion
Studio	Onion
ReleaseDate	0000-00-00
