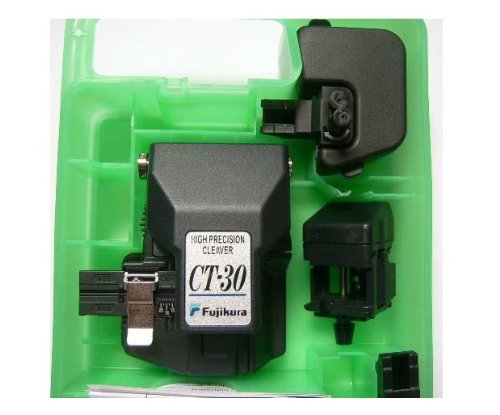

Original Fujikura CT-30A Optical Fiber Cleaver CT30A

The CT-30A Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the CT-30A is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications.

The 16-position blade yields 48,000 single-fiber cleaves, or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.

Features:

   • Dimensions (W x D x H): 69mm x 82mm x 41mm (2.7" x 3.2" x 1.6")

   • Blade lifetime: 48,000 fiber cleaves (4000 12-fiber cleaves)

   • Cleave angle capability: typically < 0.5°

Ordering information:

   • Applications: Single fibers: 250um to 900um coating, 125um cladding

   • Fiber Handling System: AD-30A Adapter Plate

   • Cleave Length: (900um fiber) 10mm to 20mm, (250um fiber) 6mm to 20mm

   • Part No: S014080

Accessories

   • Replacement Blade for CT-30 Series Cleavers: S012828

   • FC-02 Fiber Collector: S014092

   • AD-30A Adapter Plate: S014096

   • AD-30B Adapter Plate: S014100

   • FDB-02 Fiber Collector Scrap Box: S014104
