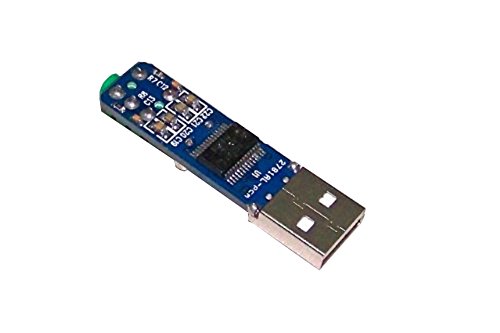

Phantom YoYo 5V USB Powered PCM2704 Mini USB Sound Card DAC

Phantom YoYo 5V USB Powered PCM2704 Mini USB Sound Card DAC Decoder Board
- Power supply voltage: 5 V (USB power supply)
- Distortion: the THD + N: 0.006% (RL > 10 k Ω)
- Distortion: the THD + N: 0.025% (32 Ω RL =)
- Signal to noise ratio: 98 dB /Dynamic range: 98 dB
- Headphone output power: 12 mW (RL = 32 Ω)
PCM2704 USB sound card/DAC, The USB input, coaxial, optical fiber, analog output. BB company is used in the main chip level HIFI PCM2704 USB decoding chip, its performance is superior to the most commonly used on the market of low-end microchip CM102S series, power supply, power is supplied by USB output can be directly connect headphones, also can do the front-end. Digital output to provide more advanced DAC decoder SPDIF digital signal, in order to get a better sound quality. Because it is the external sound card, to avoid the serious electromagnetic interference inside the case, the signal-to-noise ratio and quality improved. PCM2704 is a monolithic analog-to-digital conversion chip. It has two analog conversion output channel and one integrated USB interface controller. The interface is in conformity with USB1.1 standards. PCM2704 can receive 44 KHZ and 48 KHZ, 32 KHZ sampling rate of 16 bit stereo or mono audio data, volume and mute function of internal integration chip, and can adjust the volume of the computer and synchronous mute.

USB support sampling rate: 16 bit / 32-48 KHZ USB support system: WINXP/Windows 7 / doing, apple's MAC OS 9 / OS X, the android 4.1 + system model (need to support OTG) Photos are for reference only, the terminal color in kind prevail.
Country USA
Brand Phantom YoYo
Manufacturer Phantom YoYo
Binding Electronics
ItemPartNumber PCM2704 mini
Model PCM2704 mini
UPCs 998765433662
EANs 0998765433662
ReleaseDate 0000-00-00

Country	USA
Brand	Phantom YoYo
Manufacturer	Phantom YoYo
Binding	Electronics
ItemPartNumber	PCM2704 mini
Model	PCM2704 mini
UPCs	998765433662
EANs	0998765433662
ReleaseDate	0000-00-00

Phantom YoYo 5V USB Powered PCM2704 Mini USB Sound Card DAC Decoder Board
